Download the Quick Start Guide and Spec Sheet

Wireless DMX Control. Less Cable. More Flexibility.

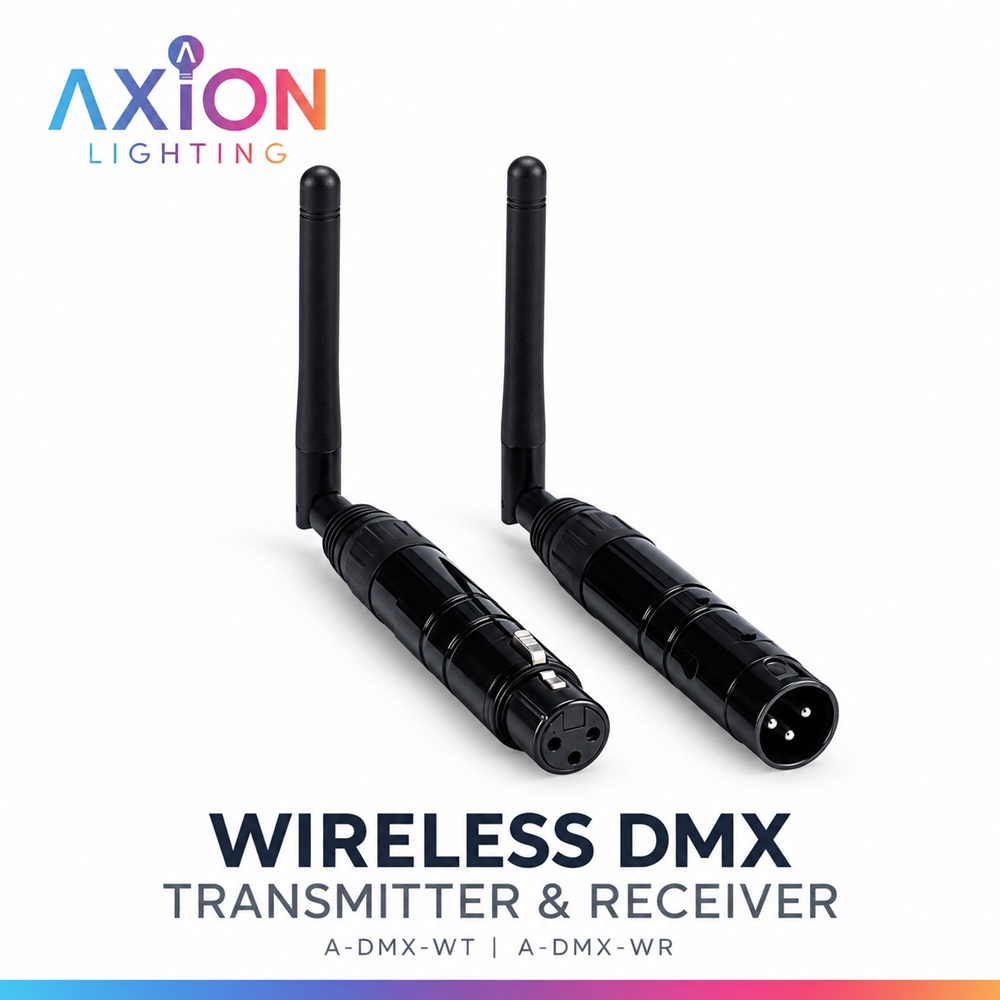

Bring wireless control to your DMX lighting system with the Axion Lighting Wireless DMX Transmitter & Receiver. Designed to transmit standard DMX512 data over a 2.4 GHz wireless link, these compact units reduce the need for long signal cables between your lighting controller and receiving equipment.

Use them for indoor stages, venues, event spaces, and lighting installations where running DMX cable is inconvenient or impossible.

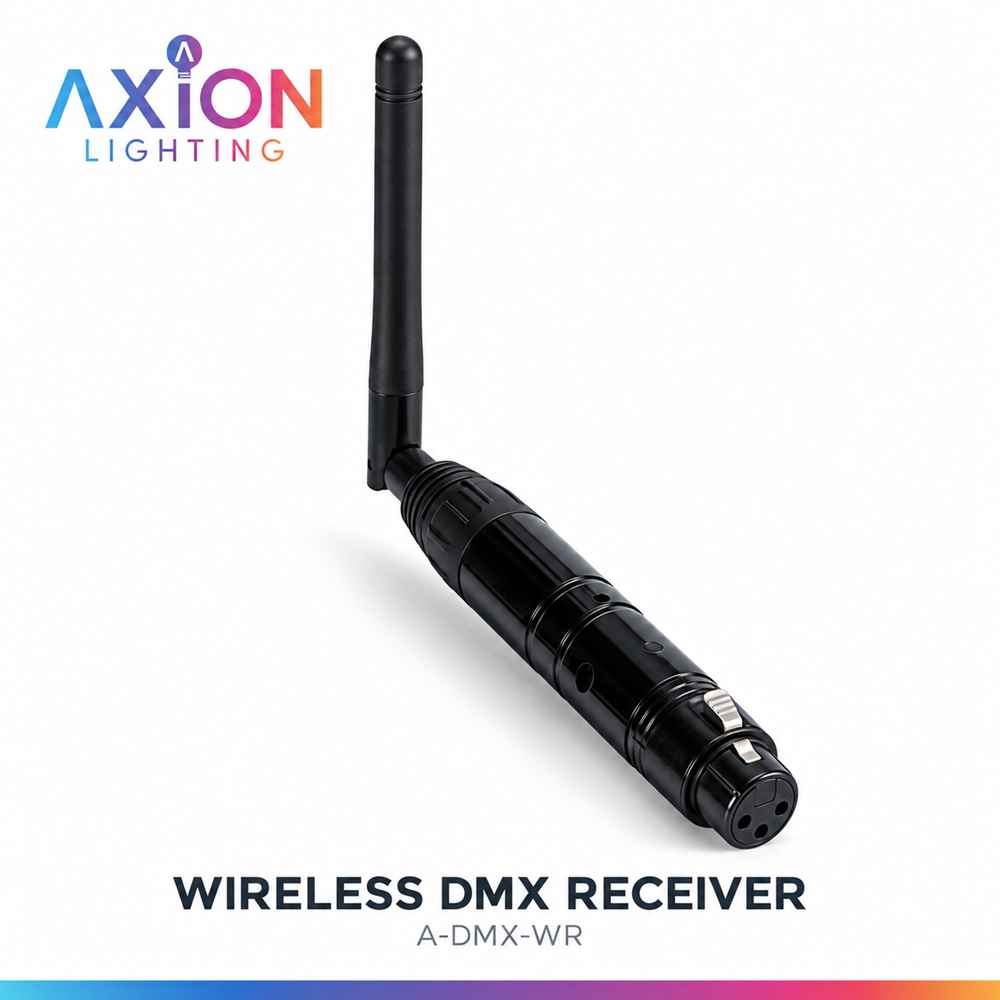

The transmitter connects to the controller or decoder’s DMX output, while the receiver connects to the DMX input of a compatible fixture or decoder. Set both units to the same color-coded ID group to establish the wireless link.

For larger setups, one transmitter can send the same DMX signal to multiple receivers set to the same ID group, allowing you to distribute control across several fixture locations.

Flexible Wireless Communication

Automatic frequency hopping across 126 RF channels helps reduce the effects of interference. Seven selectable ID groups let you organize separate wireless links within the same location.

With a rated line-of-sight range of up to 400 meters—approximately 1,312 feet—the system provides flexibility when positioning your controller and receiving equipment. Actual range depends on obstructions, placement, and the surrounding wireless environment.

Simple Setup and Clear Status Indicators

A push-button selector lets you cycle through seven color-coded ID groups. Built-in LEDs indicate the selected group and show when DMX data is being transmitted or received, helping you check the connection during setup.

A wireless link requires both a transmitter and at least one receiver.

Technical Specifications

Installation note: Wireless transmission replaces the DMX signal cable between the transmitter and receiver. Each unit still requires external power, and connected lighting equipment requires its own power supply.
