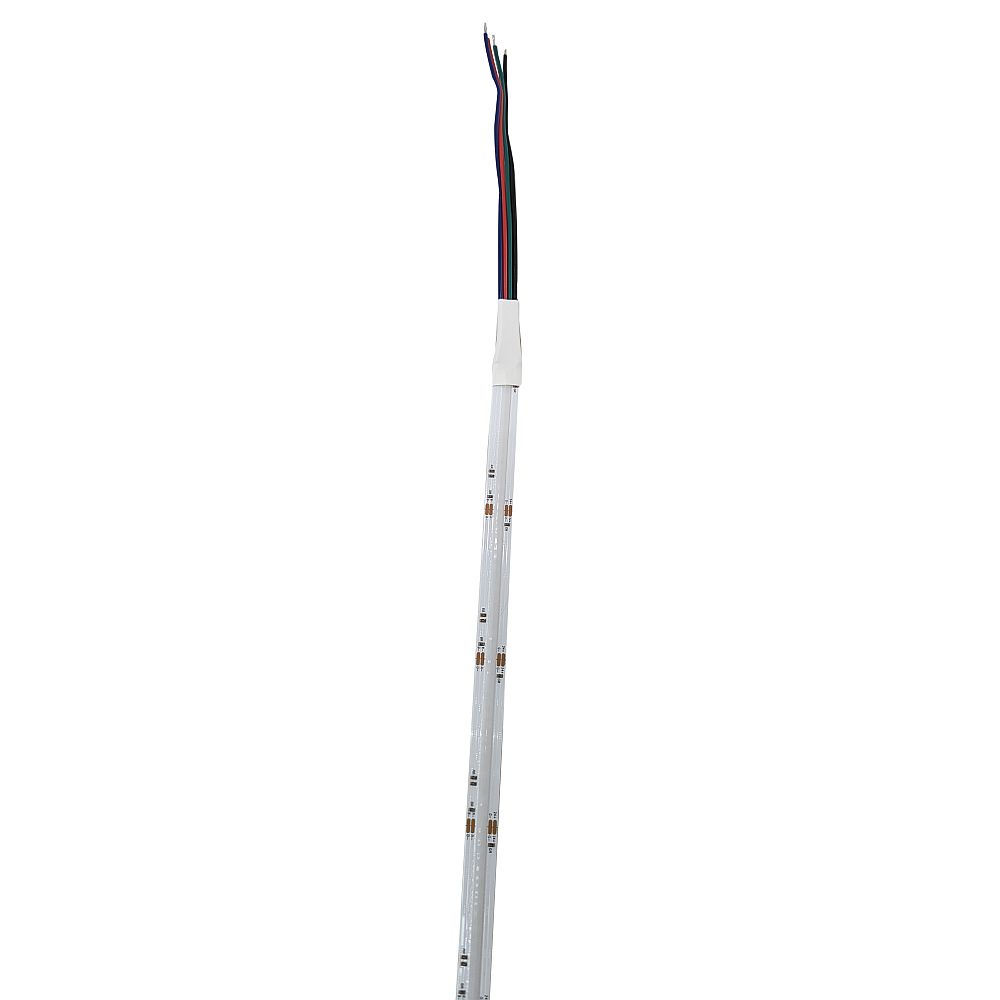

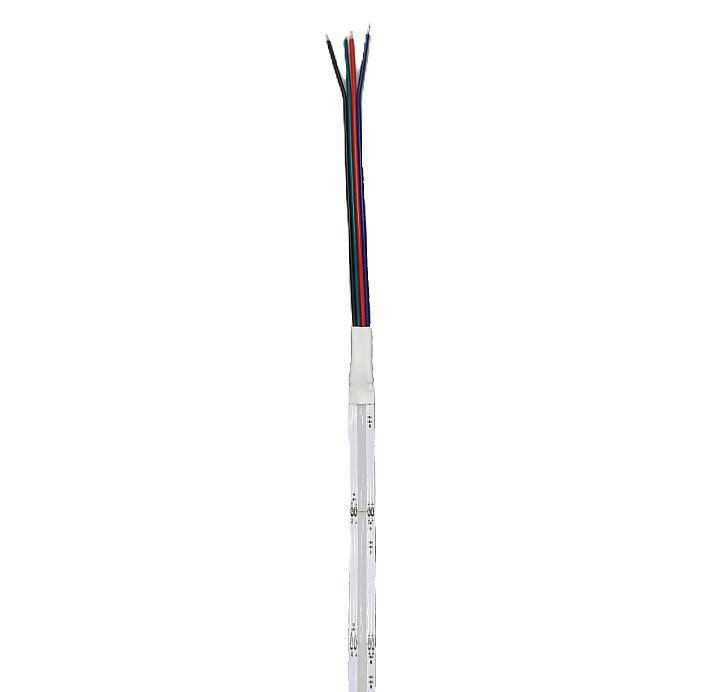

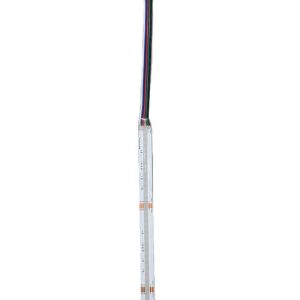

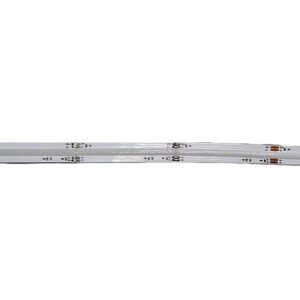

Axion COB LED Strip Tape

$62.00$75.00

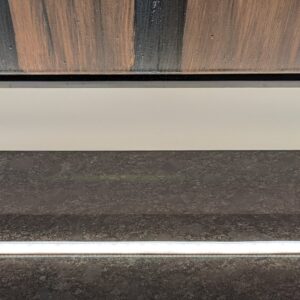

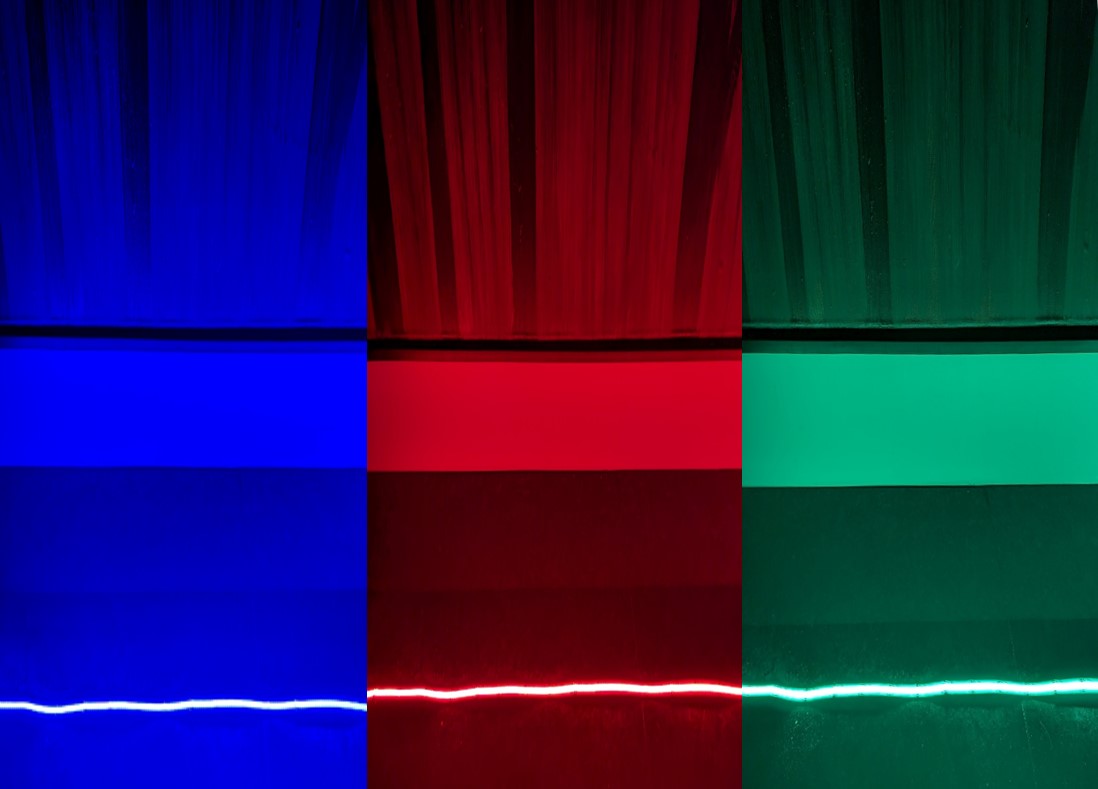

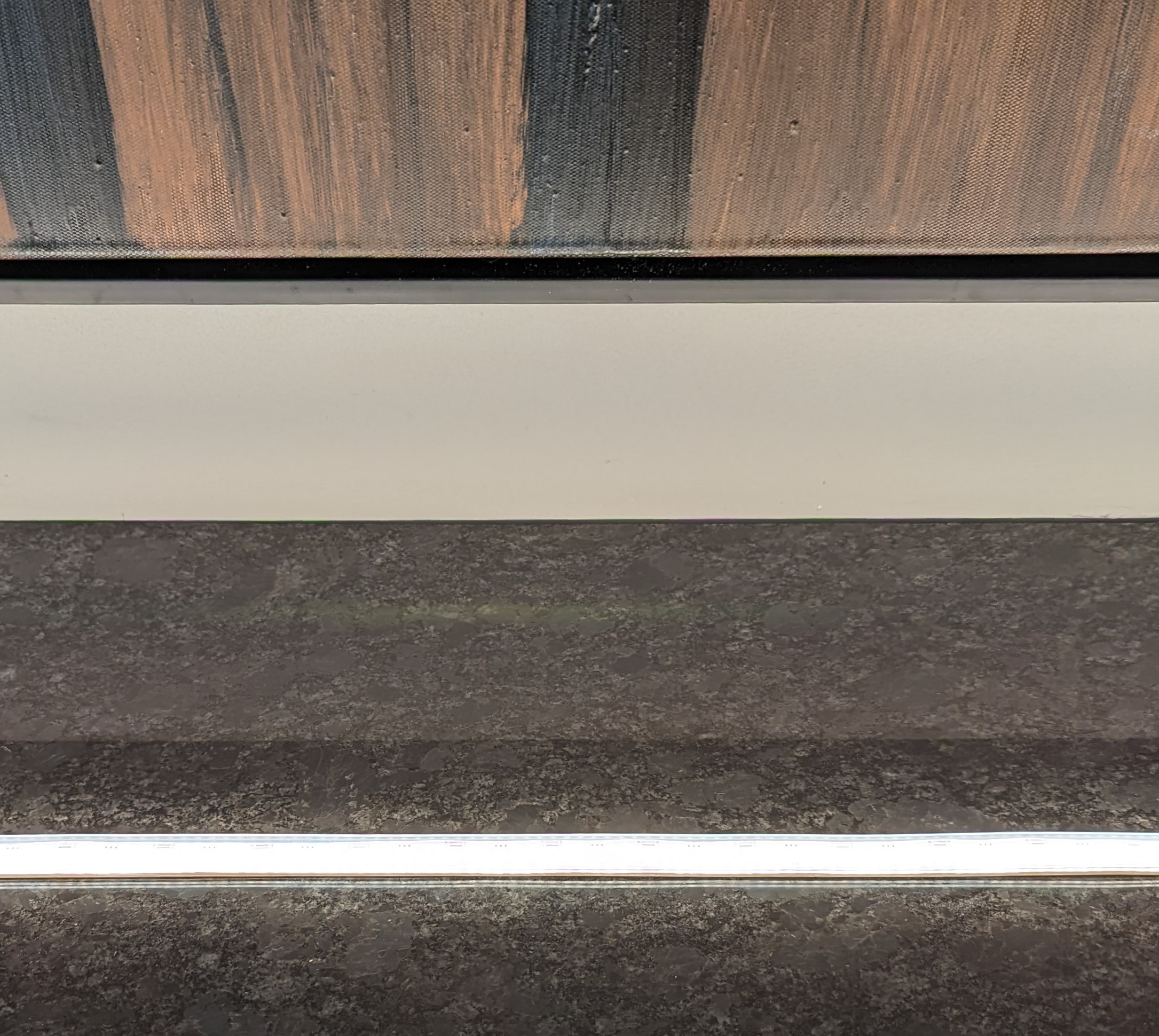

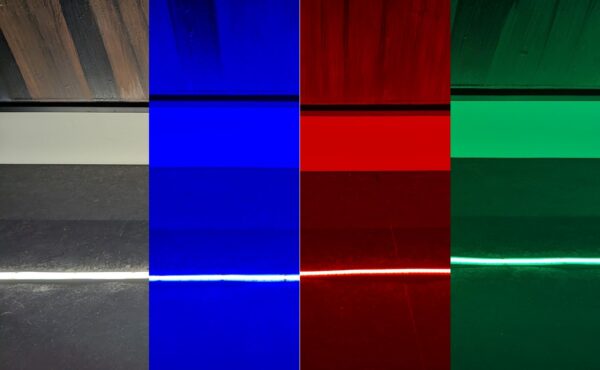

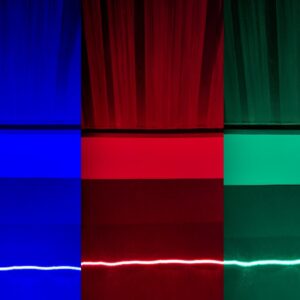

Axion Lighting 24-volt COB LED strips are the perfect solution for professionals looking to add RGB and RGBW accent lighting to any project. Our COB LED strips produce a solid, consistent color across the entire strip, perfect for giving enhanced ambiance to any space, especially when you don’t want to see each individual LED on reflective or close surfaces.

SKU: N/A Categories: , ,

Axion Lighting 24-volt COB LED strips are the perfect solution for professionals looking to add RGBW accent lighting to any number of areas. Often used for:

  • Soffits
  • Accent lighting
  • Back-lighting
  • Stair lighting
  • Shelf lighting
  • Toe kick lighting
  • Task lighting
  • Under cabinet lighting
  • Cove lighting
  • Sign lighting

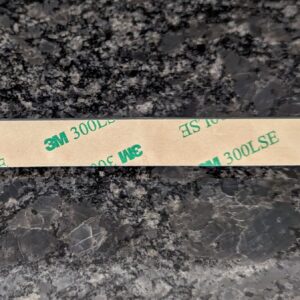

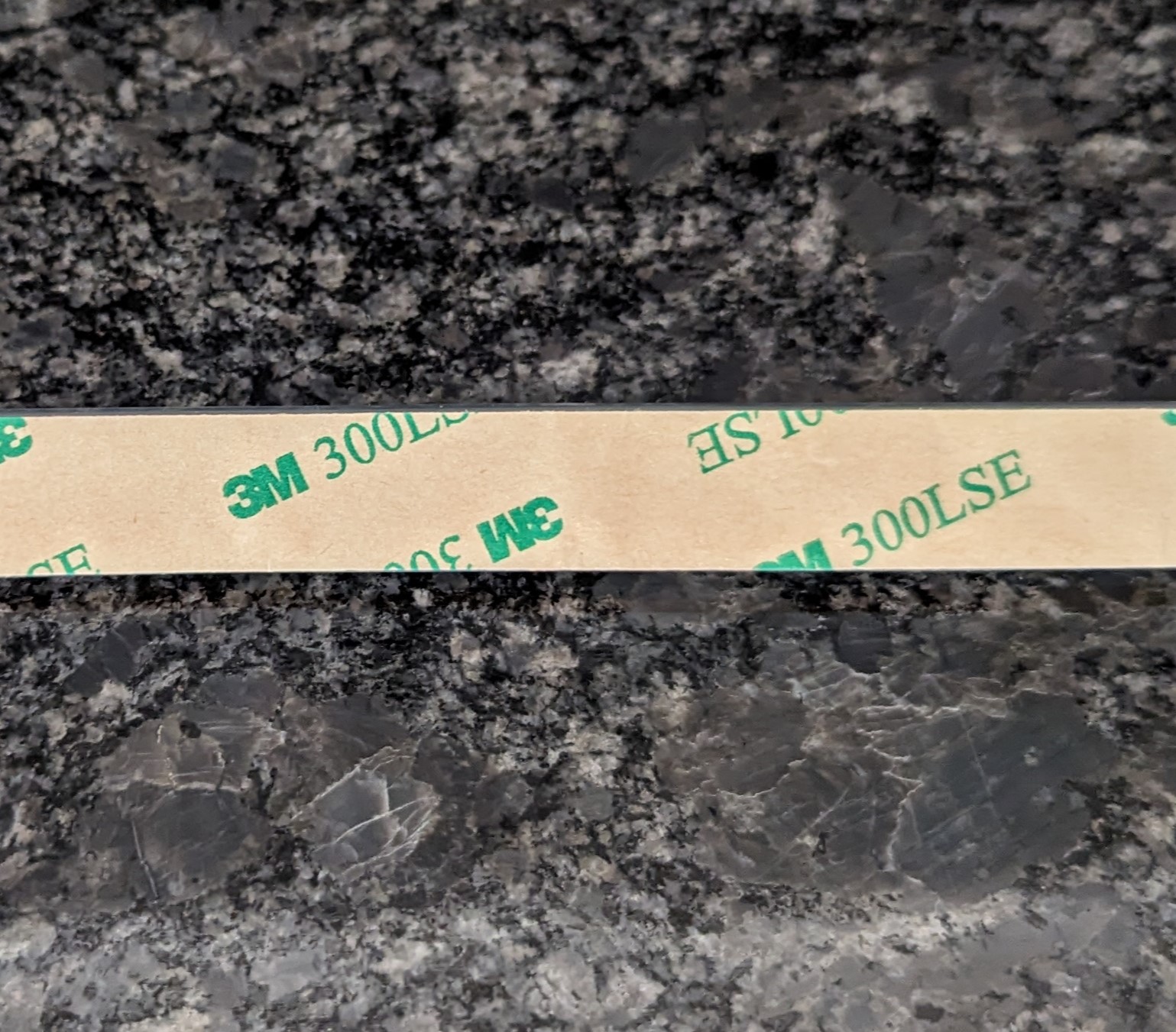

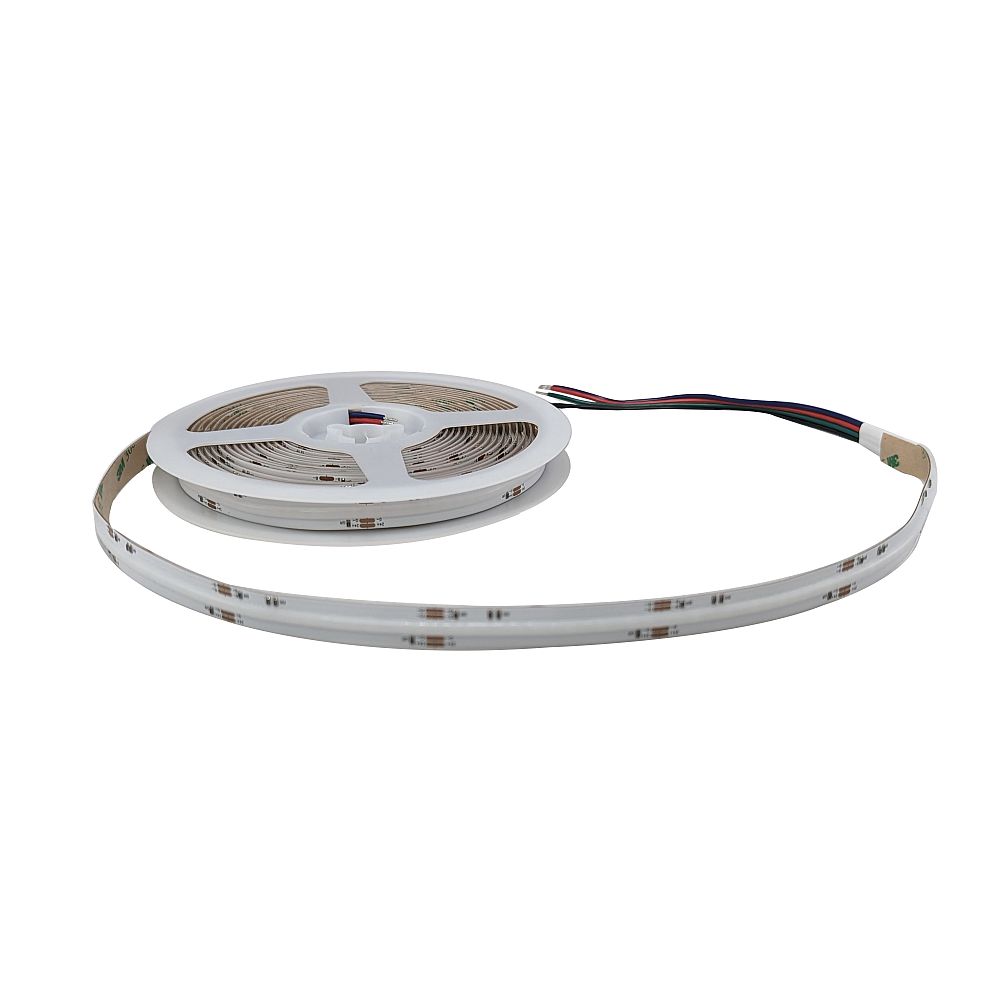

Strips can be quickly cut down to size and come with double-sided adhesive tape, adding to the ease of installation. They must be powered by a constant 24VDC.

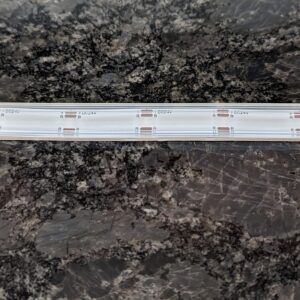

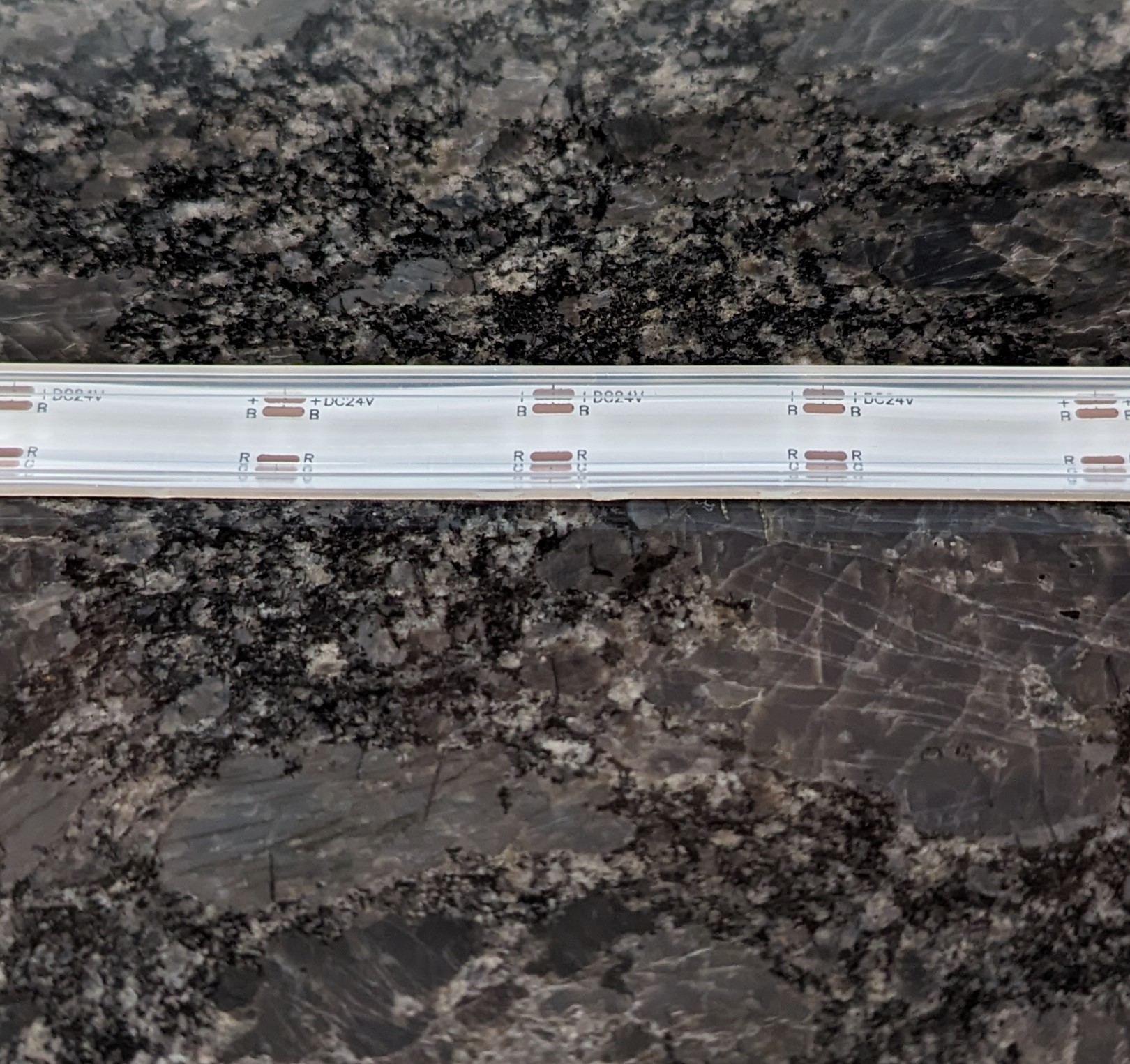

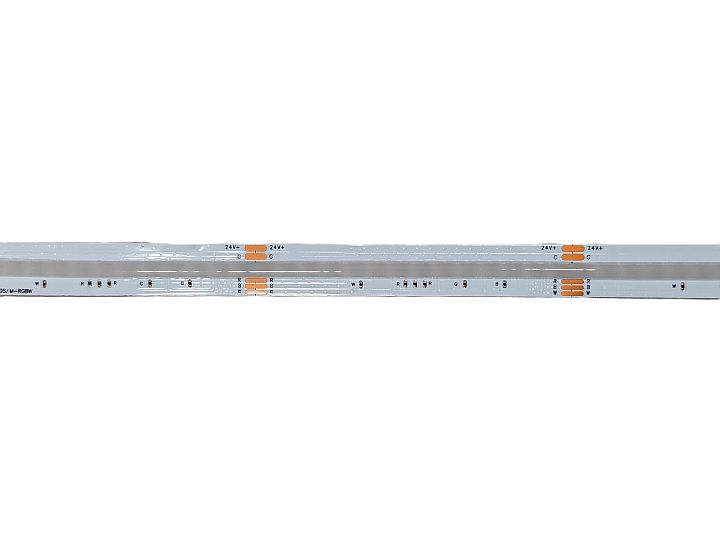

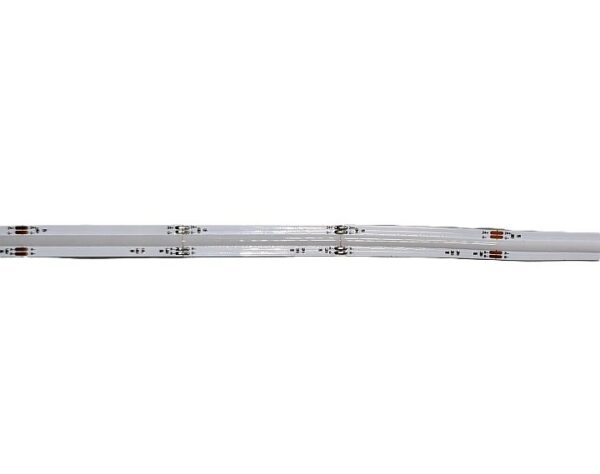

For custom lengths, the LED strips can be cut where marked on the solder pads. Use 18-22 gauge wire or LED strip connectors to join multiple strips, however it is not recommended you exceed a total of 10 meters or 33 feet where possible to avoid voltage drop which may result in differing brightness from one end to the other.

If your application needs more than the maximum run length, you can wire strips in parallel (homerun the power back to the DMX controller instead of just adding to the existing strip. A 24-volt DC Power Supply is required to run these LED Strip Lights. Total the entire installed wattage and then adding 10-15% overhead. Brand-name Mean Well power supplies that have proven to last and deliver high quality for years and can also be purchased in our store.

Weight N/A
Dimensions N/A
Type

RGB IP22 Indoor, RGBW IP22 Indoor, RGB IP65 Indoor/Outdoor, RGBW IP65 Indoor/Outdoor

Specifications

RGB Indoor RGBW Indoor RGB Indoor/Outdoor RGBW Indoor/Outdoor
SKU A-STRIP-75W-RGBCOB-24V-I A-STRIP-105W-RGBWCOB-24V-I A-STRIP-60W-RGBCOB-24V-O A-STRIP-100W-RGBWCOB-24V-O
Voltage 24v 24v 24v 24v
Total Wattage 75w 105w 60w 100w
Length 5M (16.4ft) 5M (16.4ft) 5M (16.4ft) 5M (16.4ft)
LED Quantity 2,520 – 840 LEDs per meter 3,920 – 784 LEDs per meter 2,400 – 480 LEDs per meter 4,480 – 896 LEDs per meter
Power 15 watts per meter 21 watts per meter 12 watts per meter 20 watts per meter
Weather Rating IP22 – Protected from touch & objects greater than 12 mm. Indoor use only. IP22 – Protected from touch & objects greater than 12 mm. Indoor use only. IP65 – Protected against water jets from any angle. Do not submerge. Indoor/Outdoor use. IP65 – Protected against water jets from any angle. Do not submerge. Indoor/Outdoor use.
Width 10mm 12mm 14mm 14mm
Color Rendering Index 90 Ra 90 Ra 90 Ra 90 Ra
Brightness 750 Lumens per meter 700 Lumens per meter 600 Lumens per meter 800 Lumens per meter
White LED Temperature 4000K 3000K
Warranty 2 Years 2 Years 2 Year 2 Years
