Mean Well 350 Watt Power Supply

$41.00$77.00

Overview

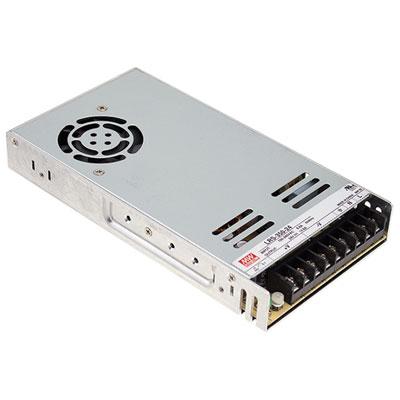

Authentic Mean Well brand LRS-350 350W Single Output Switching Power Supply

  • Wattage: 350W
  • Input: 115/230VAC
  • Output: 12 or 24 VDC
  • Warranty: 3 Years
SKU: N/A Categories: ,

Authentic Mean Well 350W Single Output Switching Power Supply. For complete details, download the LRS-350-SPEC. If ordering with a bracket, it will come with four Mean Well metal tabs and screws for easy mounting to any surface.

Features

  • Selectable AC input range switch
  • Able to withstand 300VAC surge for 5 seconds
  • No load power consumption for less than 0.75 watts
  • Small size and 1U low profile
  • Supports operating temperature up to 70 C
  • Short circuit, overload, over voltage, and over temperature protections
  • Forced air cooling used built-in DC fan
  • Compliance standards: IEC/BS EN/EN 60335-1 (PD3) and IEC/BS EN/EN61558-1, 2-16 for household appliances
  • Tested to 5G vibration
  • High efficiency, long life, and high reliability
  • LED indicator for power on
  • Over voltage category III
  • 100% full burn in testing
  • 3 year warranty

Description

The LRS-350 series is a 350W single-output enclosed type power supply. It has a 30mm low profile design. The input is selectable for 115VAC or 230VAC using the switch on the side. This unit has an output voltage of 12V. It is 90% efficient and the design of the metallic mesh case enhances heat dissipation so the whole series can operate from -25C to 70C. The entire system easily meets worldwide energy requirements.

Weight 2 lbs
Dimensions 12 × 6 × 6 in
Voltage

24, 12

Mounting Bracket

Yes, No
