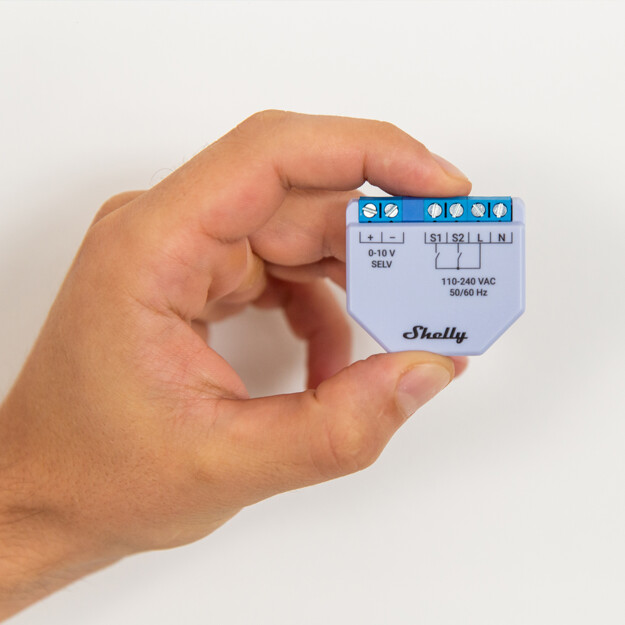

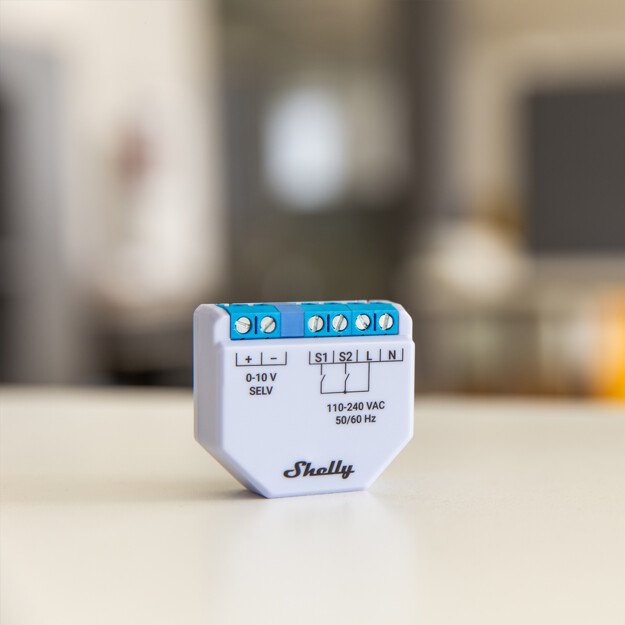

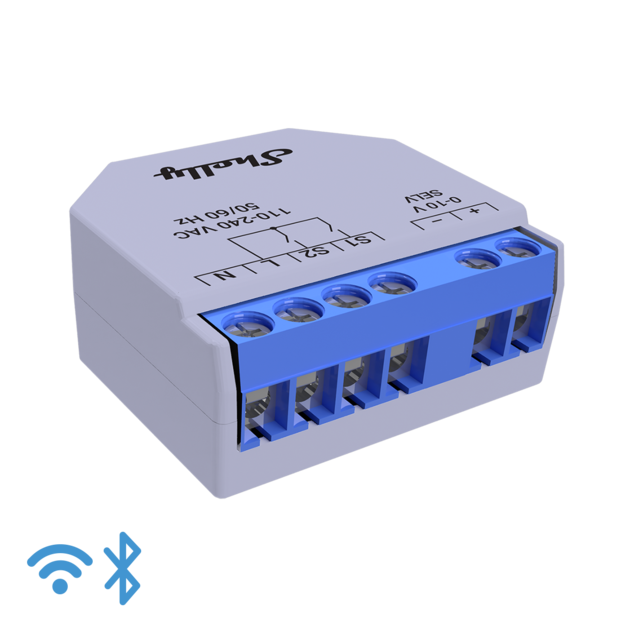

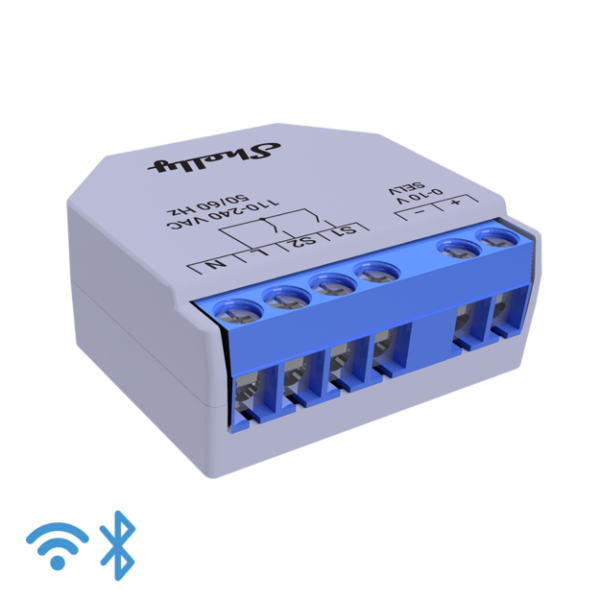

Shelly Plus 0-10V Dimmer


0-10V DC smart dimming controller

Designed to manage 0-10V dimming drivers, Shelly Plus 0-10V Dimmer offers precise dimming with remote control. It is retrofit and can be used with any regular switch you have at home.

  • No hub required! Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it with Alexa, Home Assistant, or your preferred automation platform
  • Supports signal control for multiple types of drivers (lights, motors, valves, etc; depending on the driver)
  • One/dual button dimming mode (use with physical switches)
  • Wi-Fi Range Extender & BLE Gateway
  • Extremely fast processor for immediate reaction – ESP32
  • Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates

Availability: In stock

SKU: Shelly-Plus-0-10V-Dimmer Categories: ,

Use it with your existing switches!
No need to invest in new, specialized dimmer switches that clash with your home’s aesthetic. Now, even buttons that weren’t originally designed for dimming can work with Shelly Plus 0-10V Dimmer. You can use your favorite style and brands of switches and seamlessly integrate dimming capabilities into your current setup.


  • Wi-Fi operated – Connect Shelly Plus 0-10V Dimmer to your Wi-Fi network. No HUB required!
  • Bluetooth – Quick inclusion via Bluetooth or use it as a Bluetooth gateway.
  • Smart schedules – Set custom schedules based on your daily agenda, or follow the sunrise/sunset and control your lighting accordingly.
  • Flexible input control – Use it with your existing switches, no matter if they’re single or dual button.
  • Smart scenes – Set custom scenes by combining Shelly Plus 0–10V Dimmer with your other Shelly devices.
  • Scripting – Shelly Plus 0-10V Dimmer fully supports scripting, allowing you local control and custom functionalities.
Weight 1 lbs
Dimensions 4 × 4 × 2 in


Size (HxWxD): 42x37x17 ±0.5 mm / 1.65×1.46×0.66 ±0.02 in
Weight: 17 g / 0.60 oz
Screw terminals max torque: 0.4 Nm / 3.5 lbin
Conductor cross section: 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules)
Conductor stripped length: 5 to 6 mm / 0.20 to 0.24 in
Mounting: In-wall
Shell material: Plastic
Color: Shell: 2716C, print: black
Ambient working temperature: -20 °C to 40 °C / -5 °F to 105 °F
Humidity 30 % to 70 % RH
Max. altitude 2000 m / 6562 ft
Power supply: 110 – 240 VAC ±10%
Power consumption: < 1.2 W
Neutral not needed: No
0-10 V Voltage control type: Sinking
Max control voltage: 10VDC
Max control current: 0.35 W
Internal-temperature sensor: Yes
Wi-Fi protocol: 802.11 b/g/n
Wi-Fi Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions)
Max. RF power: < 20 dBm
RF band: 2401 – 2495 МHz
Protocol: 4.2
Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions)
Max. RF power: < 4 dBm
RF band: 2400 – 2483.5 MHz
Flash: 4 MB
Schedules: 20
Webhooks (URL actions): 20 with 5 URLs per hook
Scripting: Yes

Use Cases

Brightness that suits your activities
Depending on your activities and the time of day, different types of light and luminosity are suitable. With Shelly Plus 0-10V Dimmer, you can align the minimum and maximum brightness levels with your driver’s range for exact precision when adjusting your lights. Whether you want to set the ambiance for a relaxing evening or ensure the best brightness for focused tasks, it grants you fine-tuned control to match every moment. No need to navigate through the app – just use your voice!

Personalized light schedules
Shelly Plus 0-10V Dimmer can effortlessly blend with your daily routine. Consider bedtime: Many kids prefer to fall asleep with the lights turned on. You can set schedules that, over an hour, gently dim the room before switching the lights off completely. That way, the little one will be comfortably asleep, and no energy will go to waste!

Set the mood instantly
Shelly Plus 0-10V Dimmer doesn’t stop at schedules- it embraces moments too. With its pre-set lighting scenes, a simple voice command can transform your room. Feel like watching a movie? Just tell Alexa, “Movie night,” and your space instantly adapts, casting the perfect ambiance for your cinematic experience.

Illuminate & fade
Give yourself time to exit a room without bumping into things. Once Shelly BLU Motion doesn’t detect movement, Shelly Plus 0-10V Dimmer doesn’t turn off the lights abruptly. Instead, it can gently fade them over 20 seconds, ensuring you’re never left in the dark. Customize the duration to fit your pace and always ensure a safe exit.

“Night mode” for soft night light
Walking to the bathroom at night could no longer irritate your sleepy eyes. Shelly Plus 0-10V Dimmer has a “Night mode” functionality, setting the lights’ brightness at a low level during the night hours. Now when the lights are turned on manually, through voice, or a motion sensor, they will always be dimmed and soft.


Shelly Smart Control
Shelly Smart Control is here! One app to control your spaces, energy, consumption, and expenses!
Customize your dashboards, get detailed consumption reports, and stay on top of your electricity bills.

Full compatibility
Shelly devices are compatible with Alexa, Google Home, Android and iOS. With the voice assistant, you can command Shelly Plug Play Product with your voice without having a smartphone around.
