Shelly Plus 2PM UL
Shelly Plus 2PM UL - Image 2
Shelly Plus 2PM UL - Image 3
Shelly Plus 2PM UL - Image 4
Shelly Plus 2PM UL - Image 5
, ,

Shelly Plus 2PM UL

$28.99

The Shelly Plus 2PM UL is a UL-certified small form factor 2-channel smart switch with power measurement and cover control, which allows remote control of electric appliances through a mobile phone, tablet, PC, or home automation system. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services.

The Shelly Plus 2PM UL can be accessed, controlled and monitored remotely from any place where the User has internet connectivity, as long as the device is connected to a Wi-Fi router and the Internet.

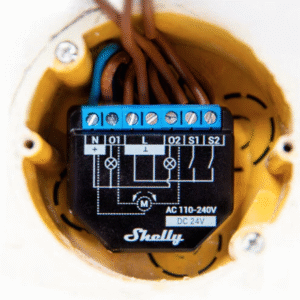

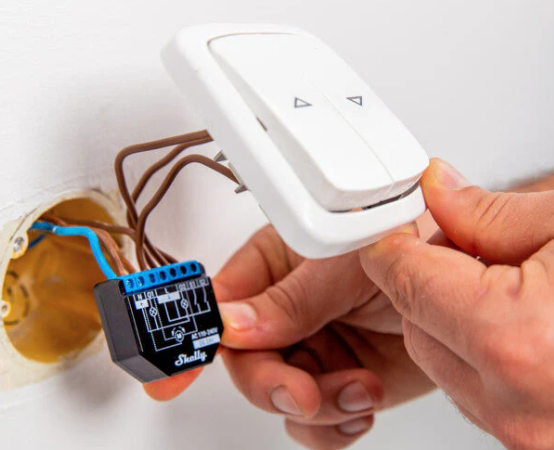

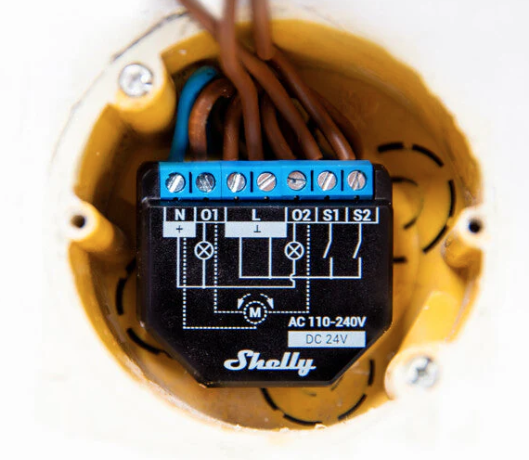

It can be retrofitted into standard electrical wall boxes, behind power sockets and light switches or other places with limited space.

The Shelly Plus 2PM UL has an embedded Web Interface which can be used to monitor and control the device, as well as adjust its settings.

Availability: In stock

SKU: Shelly-Plus-2PM-UL Categories: , ,

One Device, Different Possibilities
Automate lights and monitor their real-time power consumption or automate and control the current position of roller shutters, curtains, garage doors, etc.

Functionality:

  • 2 channels on the same phase
  • Power metering on each channel
  • Cover (roller) control- automate and adjust the position of roller shutters, blinds, gates, curtains, awnings, sliding doors, and other bi-directional motors
  • Scripting, schedules, and webhooks
  • Designed to fit in most standard electrical boxes and switches
  • Easy control through the Shelly app, various protocols, and platforms, as well as voice assistants
Weight 1.5 lbs
Dimensions 7 × 7 × 3 in

Specifications

Type Value
Physical
Size (HxWxD): 37x42x16 mm / 1.46×1.65×0.63 in
Weight:
Mounting: Flush mounting
Screw terminals max torque: 0.25 Nm / 2.2 bin
Conductor cross section: 1.0 to 2.5 mm² / 20 to 14 AWG
Conductor stripped length: 5 to 6 mm / 0.20 to 0.24 in
Shell material: Plastic
Color: Black
Environmental
Ambient temperature: -20 °C to 40 °C / -5 °F to 105 °F
Humidity 30 % to 70 % RH
Max. altitude 2000 m / 6562 ft
Electrical
Power supply: 120 VAC, 50/60Hz
Power consumption: < 1.4 W
Output circuits ratings
Max switching voltage AC: 120 V
Max switching voltage DC: N/A
Max switching current AC: 8 A (per channel), 16 A (total)
Max switching current DC: N/A
Sensors, meters
Internal-temperature sensor: Yes
Voltmeter (AC) Yes
Ammeter (AC) Yes
Radio
RF band: 2400 – 2495 MHz
Max. RF power: <20 dBm
Wi-Fi protocol: 802.11 b/g/n
Wi-Fi Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions)
Bluetooth Protocol: 4.2
Bluetooth Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions)
MCU
CPU: ESP32-U4WDH
Flash: 4 MB
Firmware capabilities
Schedules: 20
Webhooks (URL actions): 20 with 5 URLs per hook
Scripting: Yes
MQTT: Yes
CoAP: No

Use Cases

  • Residential
  • MDU (Multi Dwelling Units – apartments, condominiums, hotels, etc.)
  • Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
  • Government/municipal
  • University/college

Compatibility

Full compatibility
Shelly devices are compatible with Alexa, Google Home, Android and iOS. With the voice assistant, you can command Shelly Plug Play Product with your voice without having a smartphone around.

Shelly Smart Control
Shelly Smart Control is here! One app to control your spaces, energy, consumption, and expenses!
Customize your dashboards, get detailed consumption reports, and stay on top of your electricity bills.
