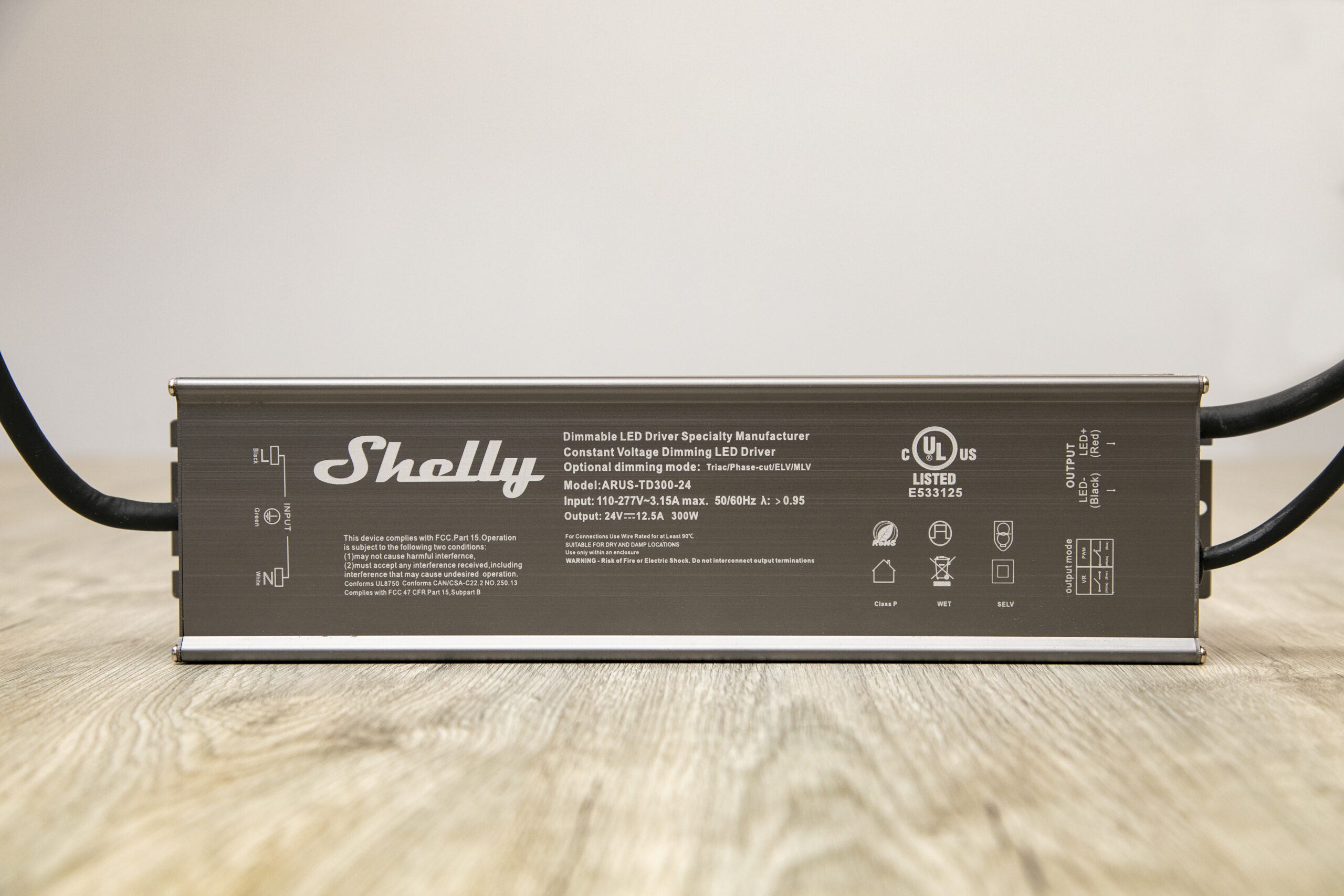

The Shelly ARUS-RTD300-24 is a 300W LED driver with an IP67 outdoor weather protection rating. Equipped with compatibility for various dimming methodologies, this unit offers enhanced adaptability and functionality for diverse applications.

Specifications

Certifications and Ratings

• UL Listed
• IP 67 Rated – Complete protection against dust over an extended time, protected against contact with objects greater than 1mm in diameter, tested to work for at least 30 minutes while submerged in up to 1 meter of water.

Input

• Input Voltage: 110-277 VAC 50/60Hz
• Input Current: 3.15A

Output

• Output Voltage: 24 VDC
• Output Current: 12.5 A
• Output Wattage: 3000 W
• Efficiency: 86%
• Power Factor: 0.98

Protections

• Short Circuit
• Overload
• Over-Temperature

Installation Locations

• Dry, Damp or Wet

Dimming Technology

• Triac Forward Phase
• Triac Reverse Phase
• MLV/ELV
• PWM or Voltage Regulated Output

Dimensions

• Metric Dimensions: 304.4 mm x 78mm x 48 mm
• Imperial Dimensions: 11.98” x 3.07” x 1.88″

Warranty

• 7 Years
