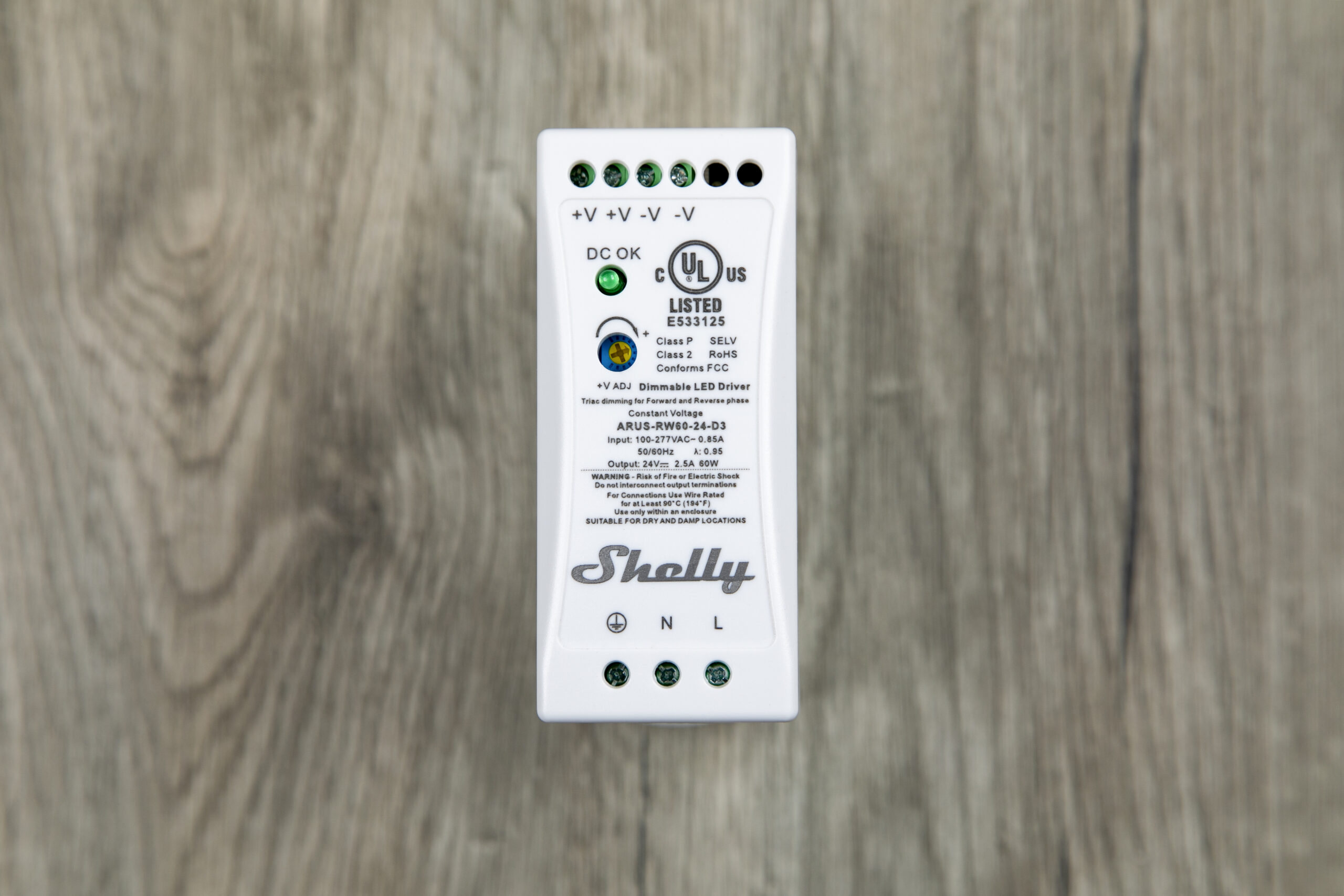

The Shelly ARUS-RW-60-24-D3 is a 24V DC power supply unit with a 60W capacity. Equipped with multiple positive and negative output terminals, it offers enhanced functionality and
adaptability for diverse applications.

Specifications

Certifications and Ratings

• UL Listed
• IP 20 Rated

Input

• Input Voltage: 110-277 VAC 50/60Hz
• Input Current: 0.68A

Output

• Output Voltage: 24 VDC
• Output Current: 2.5 A
• Output Wattage: 60 W
• Efficiency: 86%

Functions

• Multiple Outputs: 2
• Voltage Adjustments
• Dimming Technology: Triac dimmable/0-10V/10V PWM
• DIN Rail Mountable

Dimensions

• Metric Dimensions: 40 mm x 90mm x 102mm
• Imperial Dimensions: 1.57” x 3.54” x 4.01

Warranty

• 7 Years
