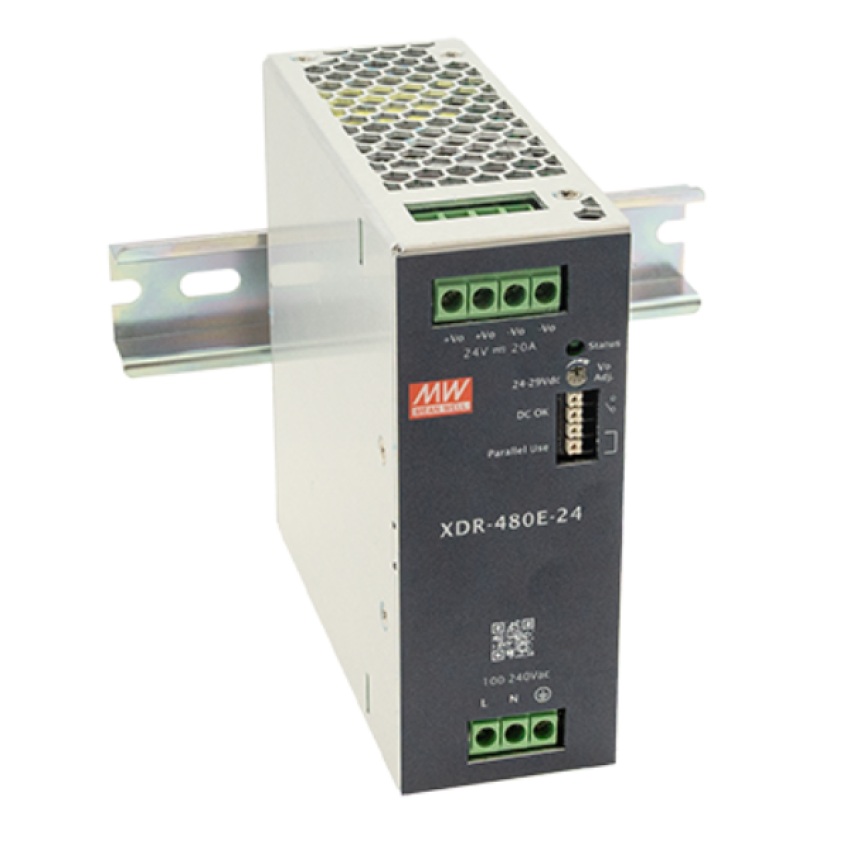

For integrators building advanced color-lighting systems, automation panels, or mixed-voltage control enclosures, the Mean Well XDR-480E-24 delivers the stable, high-efficiency power backbone your projects demand. This ultra-slim 480W / 24V / 20A DIN-rail supply provides exceptionally clean and consistent power.

Engineered for professional-grade infrastructure, the XDR-480E-24 features a 48mm-wide DIN footprint, giving you more room for processors, terminals, and low-voltage distribution inside cramped panels. Its 96% efficiency and fully fanless convection cooling keep thermal loads low, reducing risk of derating in enclosed spaces and improving long-term reliability.

Integrators will appreciate the universal 85–264Vac input, simplifying procurement and standardizing builds across commercial, architectural, and landscape projects. A built-in DC-OK relay provides instant system-health feedback to your equipment or monitoring platforms, making troubleshooting and remote service easier.

Safety and uptime are reinforced with full protection against over-load, short-circuit, over-voltage, and over-temperature, helping safeguard sensitive LED electronics and control gear. Need higher capacity? The XDR-480E-24 supports parallel operation (up to 3+1), enabling scalable high-power lighting installations and redundant architectures without redesigning your panels.

Features

• Electrical
  • Output Voltage: 24V DC
  • Output Current: 20A
  • Rated Power: 480W
  • Voltage Adjustment Range: ~24–28V
  • Efficiency: Up to 96%
  • No-Load Power Consumption: <1.2W
  • Ripple & Noise: Low-noise, industrial-grade output
• Input
  • Input Voltage Range: 85–264Vac (universal input)
  • Input Frequency: 47–63Hz
  • Inrush Current: Controlled, depending on input voltage
• Protections
  • Short-circuit protection
  • Overload / over-current protection
  • Over-voltage protection
  • Over-temperature protection
  • Auto-recovery behavior

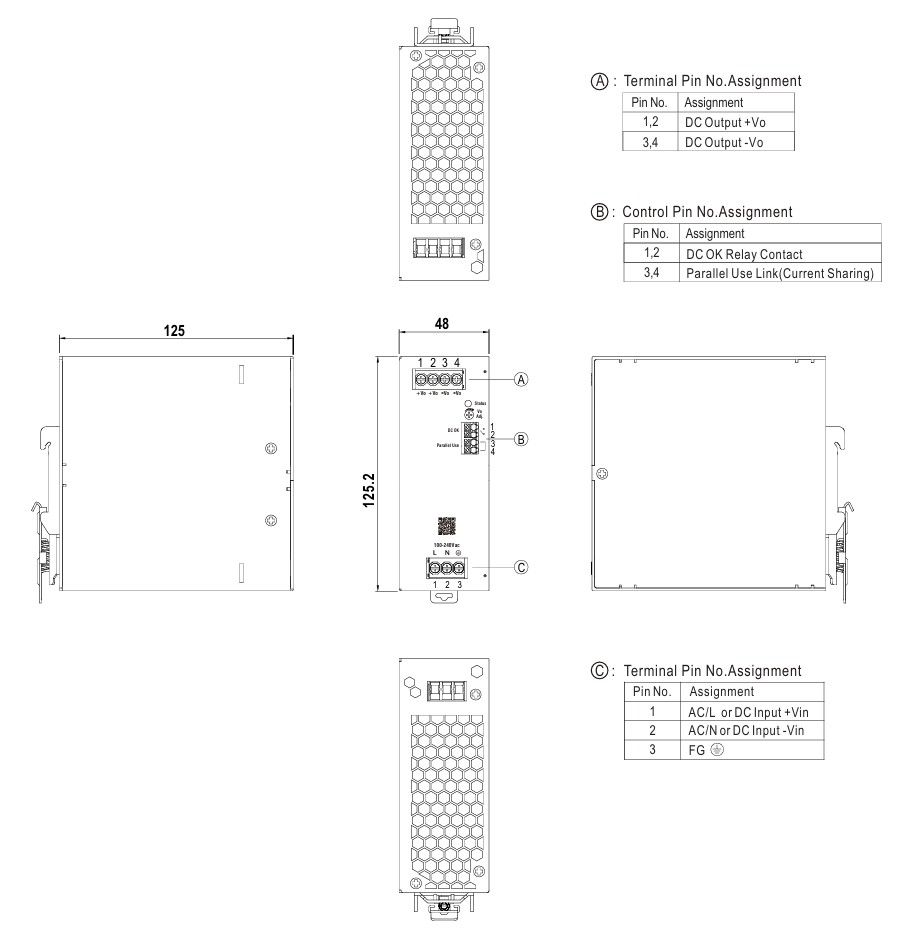

• Mechanical
  • Form Factor: DIN-rail mount (TS-35/7.5 or TS-35/15)
  • Width: Ultra-slim 48mm housing
  • Cooling: Fanless, convection-cooled
  • Case Material: Industrial-grade metal enclosure
• Signals & Monitoring
  • DC OK Relay Output: Provides status monitoring for controllers/PLC systems
  • LED Indicators: Power status
• Environmental
  • Operating Temperature: Wide range (typically –25°C to +70°C with derating)
  • Humidity: 20–95% non-condensing
  • Altitude: Rated for high-altitude operation
• Certifications & Standards
  • Complies with industrial safety and EMC standards
  • OVC III (over-voltage category 3) rating
• Scalability
  • Parallel Operation: Supports up to 3+1 units for redundancy or expanded power (up to 1920W)
