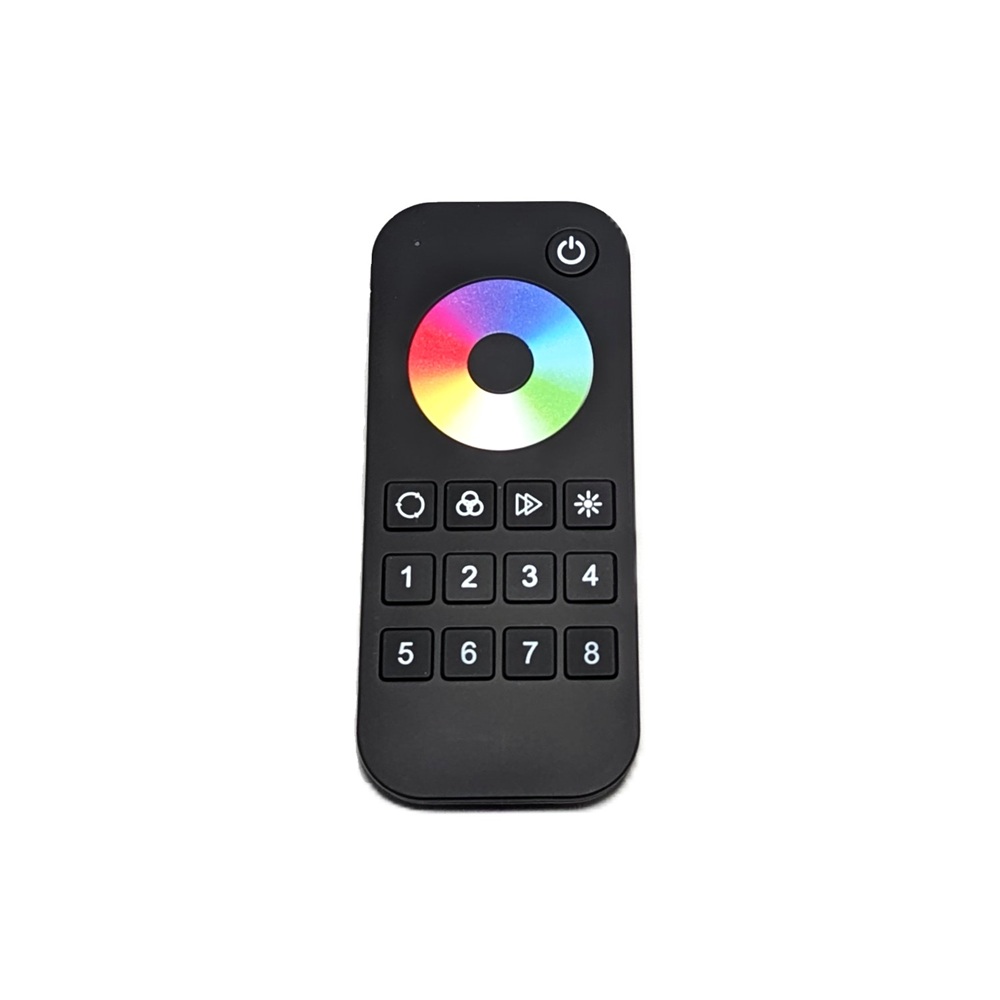

Axion SPI Pixel Decoder RF Remote
Axion SPI Pixel Decoder RF Remote - Image 2
Axion SPI Pixel Decoder RF Remote - Image 3

Axion SPI Pixel Decoder RF Remote

$29.00

The perfect complement to our Axion SPI Pixel LED DMX decoder if you’re looking for an easy way to control your lights in standalone mode! Simply pair this remote with our pixel decoder and turn the lights on/off, change dynamic effects, set speed and brightness or even solid colors wirelessly.

Availability: In stock

- +
SKU: A-DSA-REMOTE Categories: ,

Features

  • Pairs perfectly with our SPI Pixel DMX Decoder; great for stand-alone mode when you don’t need to integrate into a larger system.
  • Ultra sensitive RGB color adjustment touch wheel.
  • Change the color, effects, brightness and speed.
  • Save and recall up to 8 scene presets.
  • Powered by 2 AAA batteries (included).

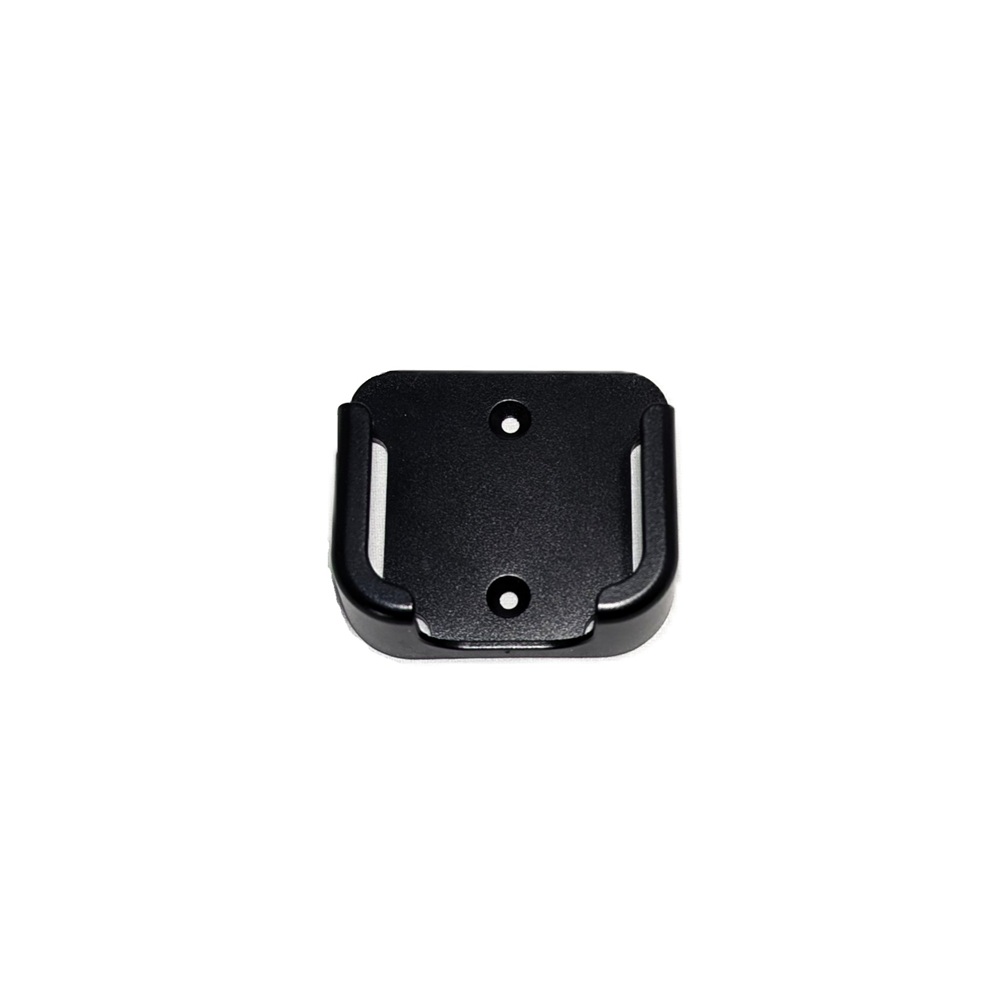

  • Wall mount included.

Technical Details

  • Wireless: 2.4 GHz
  • Working voltage: 3 VDC, battery powered
  • Working distance: 100 ft (line of sight)
  • EMC Standard: EN IEC 55015/EN, IEC 61547 ETSI, EN 301 489-1/-3
  • Safety Standard: EN 61347-1/-2, EN 62493
  • Radio Standard: ETSI EN 300 440
  • Certifications: CE, RoHS, FCC, UL
  • Warranty: 5 years
  • Operating Temperature: -30C to + 55C
  • Weather Rating: IP20

NOTE: When in 16-bit mode, the DMX addresses are cut in half, 512 -> 256 since it is now doubling the bit depth.

Weight 0.5 lbs

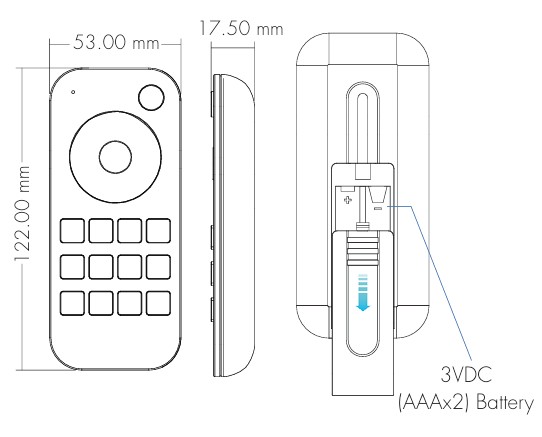

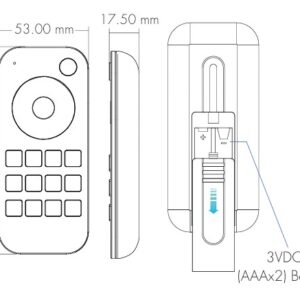

Dimensions 6 × 2 × 2 in

Instructions

  • Begin by pairing the remote with the pixel decoder. Do this by pressing and holding the “M” and “>” buttons for 2 seconds. The unit will display “RLS”. Within 5 seconds, press the on/off button on the remote. The unit will display “RLO” indicating success.
  • Pressing the power button in the upper right will turn the light on or off (toggle).
  • To set a static color, simply touch a point on the color wheel.
  • Short pressing the circular effect mode button will sequentially go through the various effects.
  • Short pressing the arrow button will cycle through the 10 levels of speed. Long pressing will change the direction of the light (forward, backward, round trip, sides to center, center out to sides, curtains open and close.
  • Short pressing the brightness button will switch between the various brightness levels. Long pressing will jump to max brightness.
  • Short pressing one of the 8 scene buttons will recall that scene instantly. Long pressing for more than 2 seconds will save the current state to that button.
