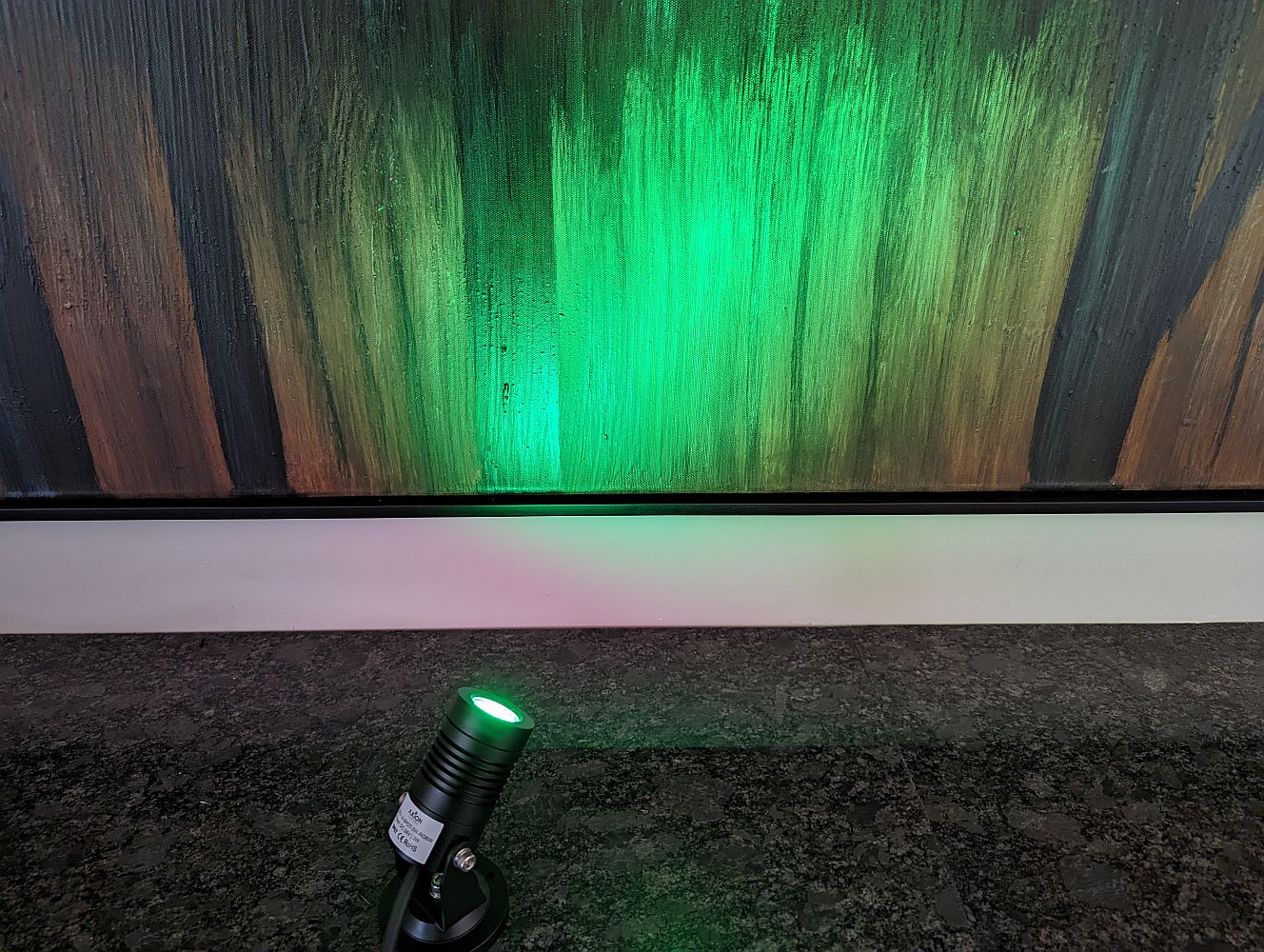

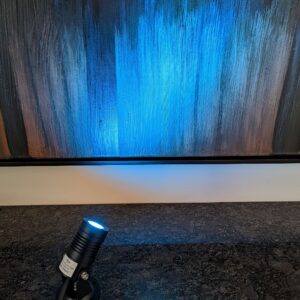

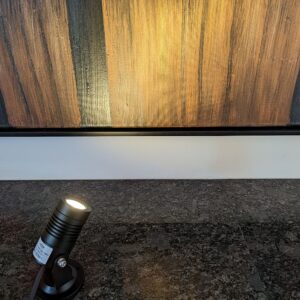

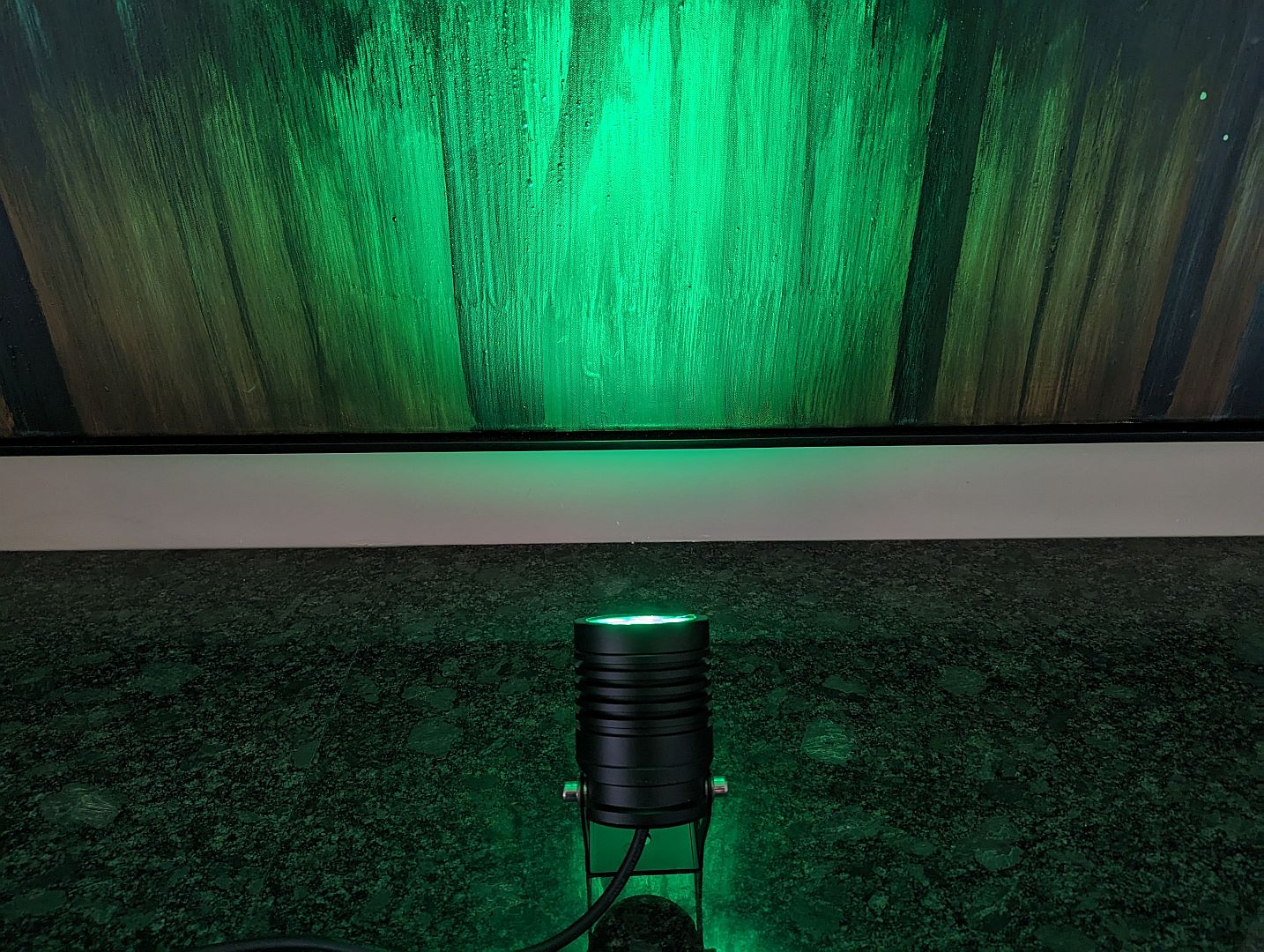

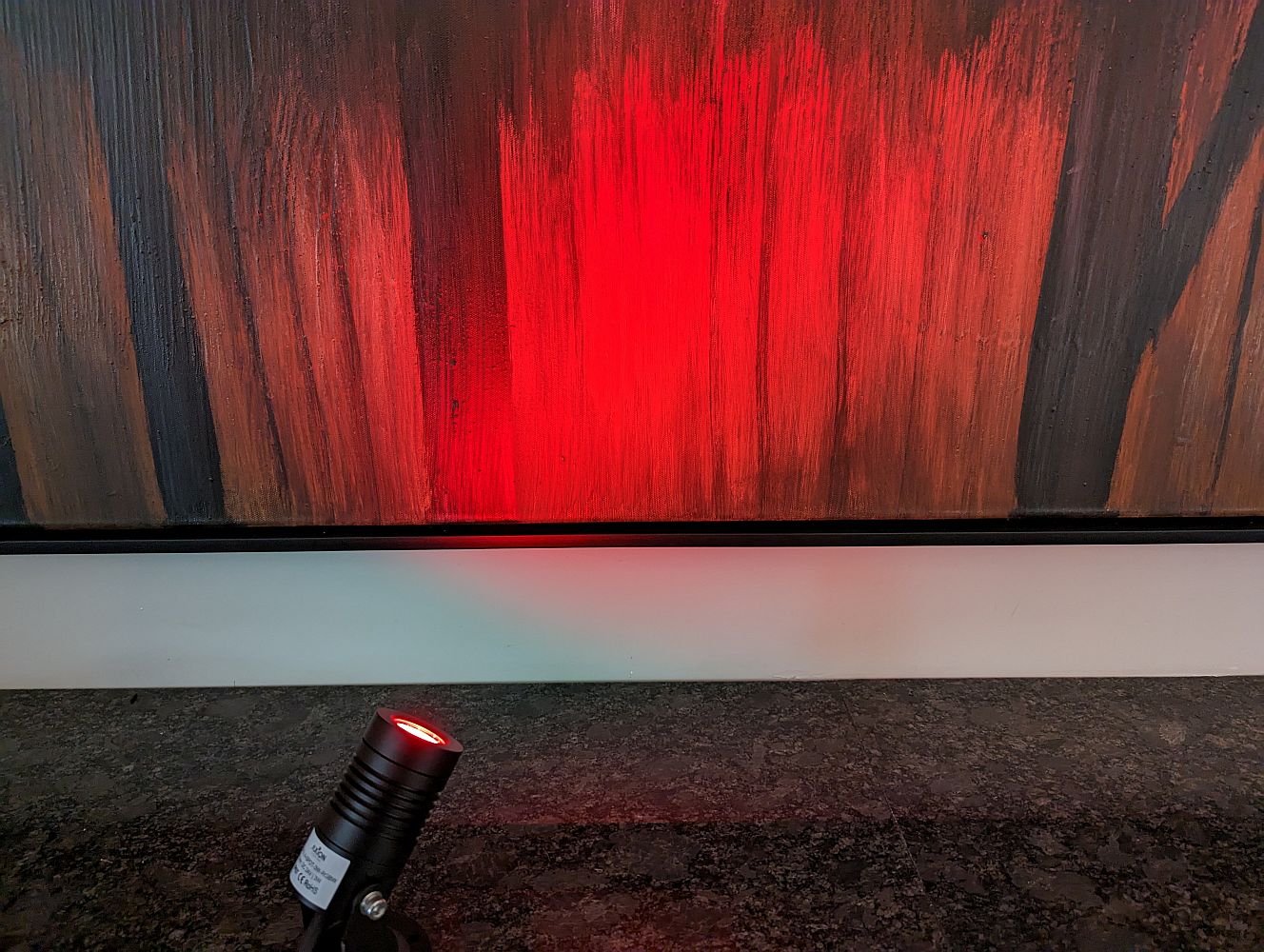

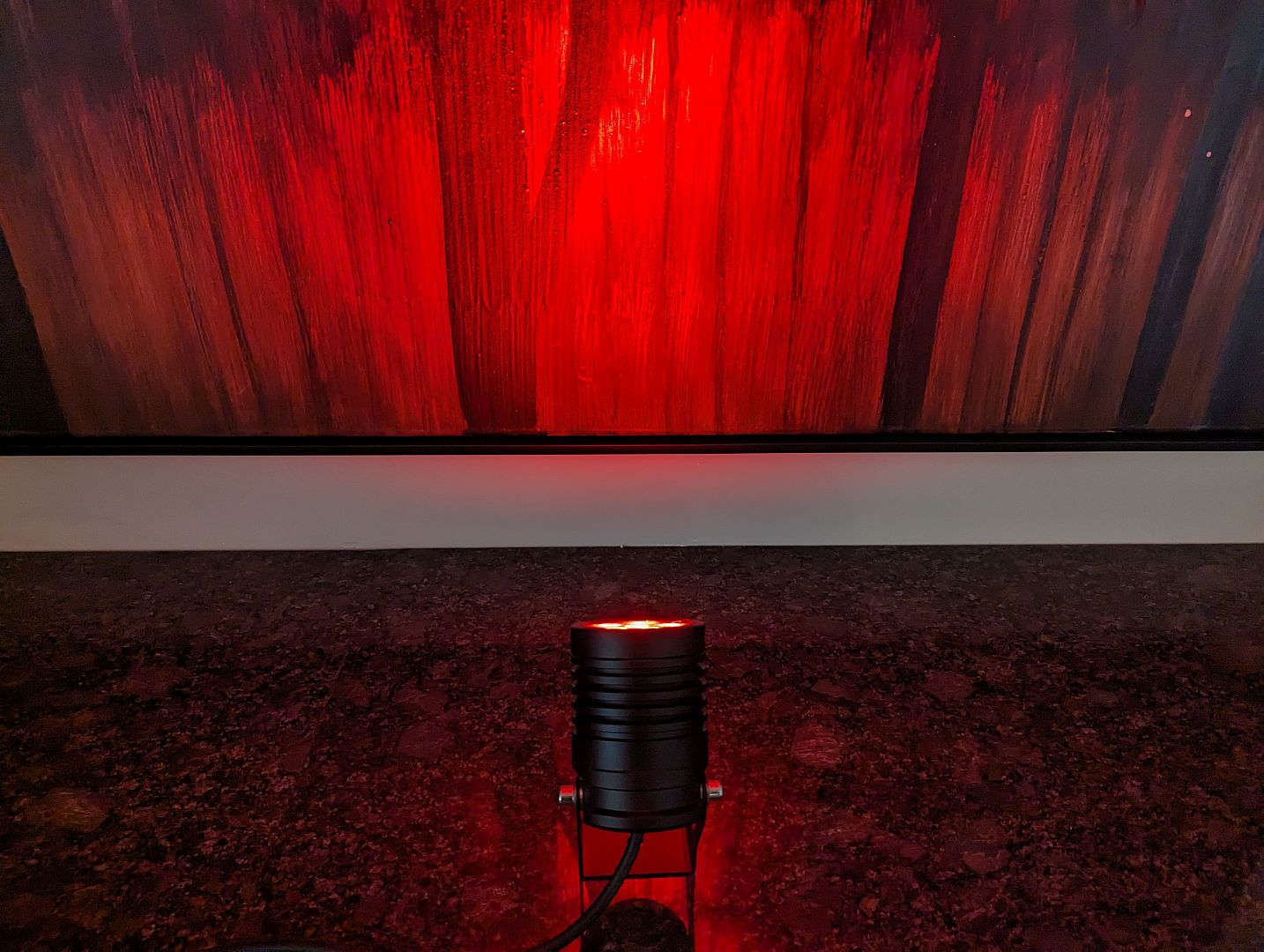

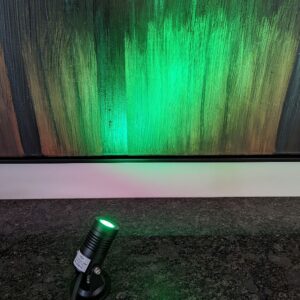

- Before you begin installation, please verify that 24-volt power is off. It is recommended you disconnect the power supply before starting.
- Although this document does not cover the power supply or system integration, it is worth noting that all dimming happens on the DC output side and these low voltage fixtures should not be hooked up to a 120V or 220V dimmer.
- Do not hold the fixture by the RGBW+ cable.
- Please check the contents of the package before installation for damage.
- We recommend bench testing before installation.
- ALL WIRING AND INSTALLATION SHOULD ADHERE TO LOCAL AND NATIONAL WIRING STANDARDS.
- The fixture is 24VDC; connecting it to 12VDC, 120/240/220 AC will void the warranty and cause permanent damage.
- Do not wire the fixture into a DMX decoder or power supply that is energized.
- All dimming happens on the 24V side and should be done with a compatible PWM device.
- Do not install in an environment that is fully sealed. The heat sink must have airflow to properly cool the device.
- Before servicing the fixture, disconnect power and allow time for it to cool.
- Use care when handling the fixture. Do not expose the device to chemicals or other substances which may be corrosive.
- Never soak or submerge the fixture in water.

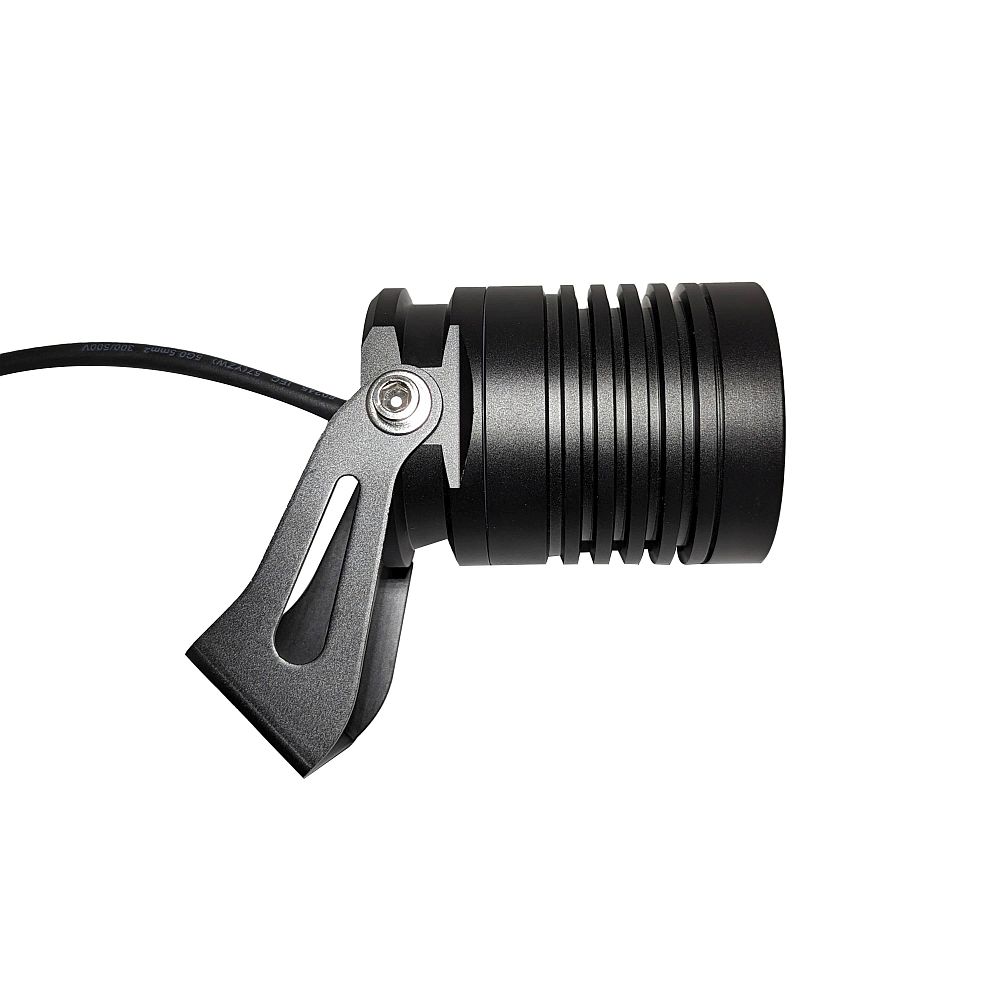

- First, identify the location where the lighting fixture will be installed.
- Verify there are no obstructions in the area including beams, pipes, electrical wires, studs, etc.

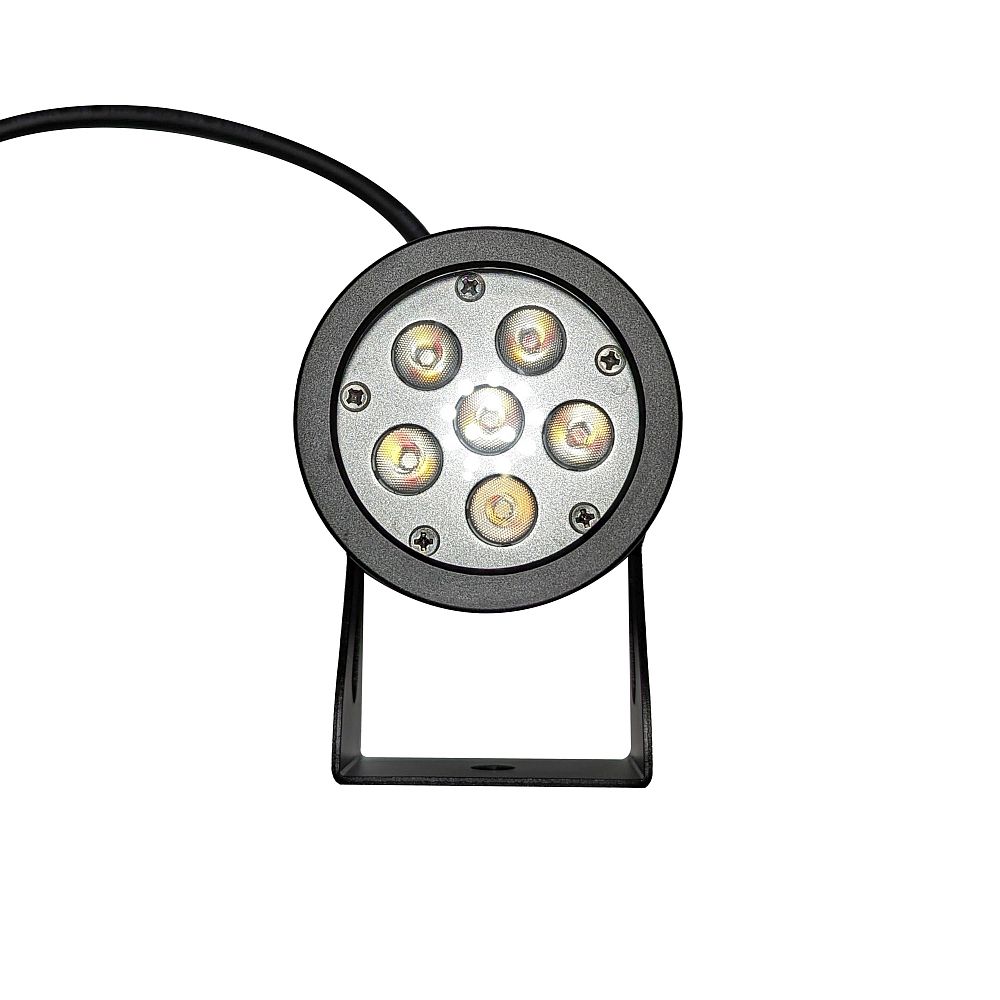

- Secure the fixture using appropriately rated screws or drywall anchors.
- At this point, run your wire from the DMX decoder (or other control device) to the first fixture. Multiple fixtures can be linked together using a single home-run wire.
- The longer the run, the thicker or lower gauge wire is recommended to help prevent voltage drop.

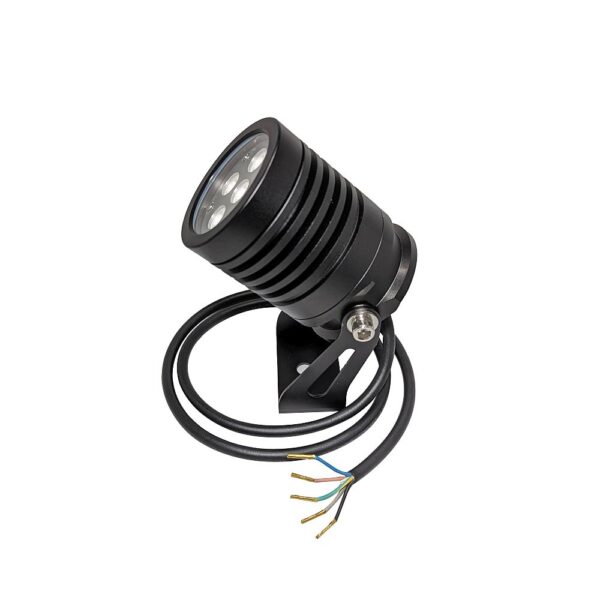

- You will need a cable with 5 wires if leveraging all Red, Green, Blue, and White LEDs (plus one for power).
- Wires can be joined using any suitable appropriate for the gauge wire such as: dolphin connectors, butt connectors, crimp connectors or even soldering. If installing outdoors, use appropriate water-tight connections that will not corrode when exposed to water.

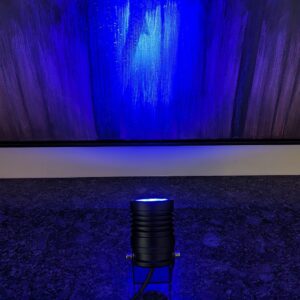

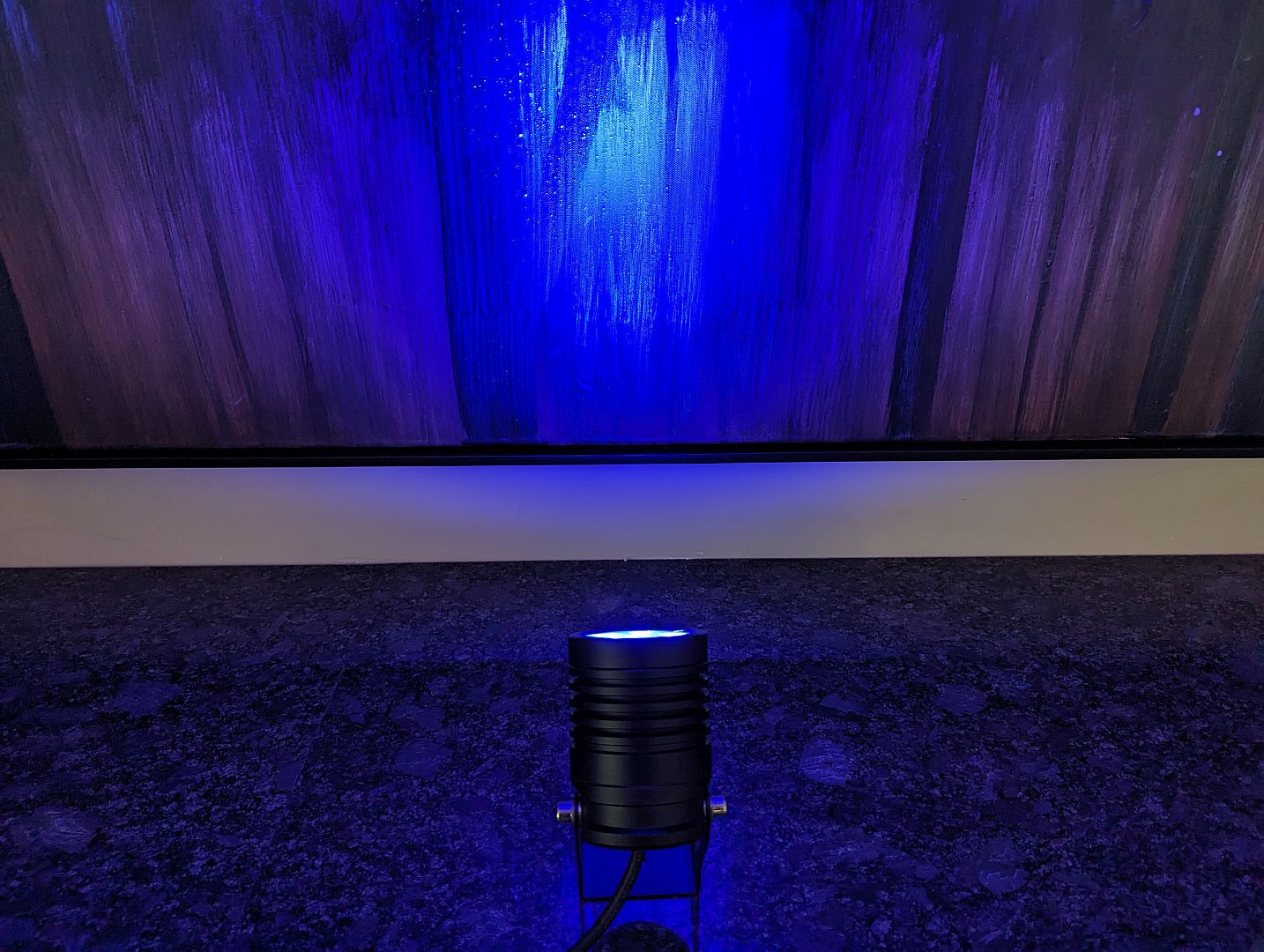

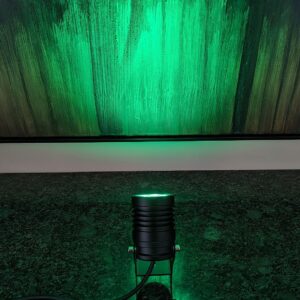

- Apply power and test that you now have control. If certain colors do not seem to work, verify you have a solid connection.
