Axion COB LED Strip Tape V2

$69.00$85.00

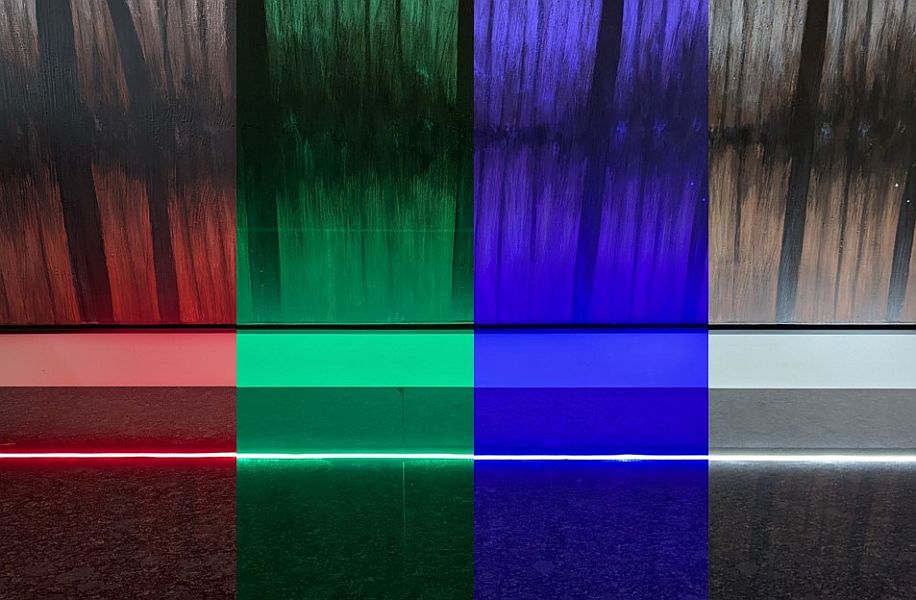

Introducing our new and improved version 2, Axion Lighting 24-volt COB LED strips. We took everything that was great about our V1 strips and improved it with a longer, 3-year warranty, upgraded 3M adhesive backing, new quick connector ends, and longer 8-inch wire leads. These strips offer the perfect solution for professionals looking to add RGB and RGBW accent lighting to any project. Our COB LED strips produce a solid, consistent color across the entire strip, perfect for giving enhanced ambiance to any space, especially when you don’t want to see each individual LED on reflective or close surfaces.

SKU: N/A Categories: , ,

Our all-new Version 2 Axion Lighting 24-volt COB LED strips are built to last and have the highest quality components to ensure consistent light output and easy installation.

For complete details, please check out the “Specifications” tab. All of our tape light LED strips feature the following:

  • 3M adhesive backing
  • 8-inch wire leads on both ends
  • Quick connectors for easy linking of multiple strips without soldering or crimp connectors
  • Longer, 3-year warranty
  • Outdoor rated strips now feature high quality silicone drip glue to help keep the PCB size small
  • RGBW strips all have 4000K dedicated white LEDs

These COB strips are a great alternative to the traditional high-density versions when you want consistent light output across the entire strip or when the strip itself may be visible.

Use cases include: soffits, general accent lighting, back-lighting TVs or monitors, stair lighting, shelf lighting, toe kicks, under cabinets, coves, and signs.

For custom lengths, the LED strips can be cut where marked on the solder pads. We recommend the use of 16-20 gauge wire for LED strip home runs. It is not recommended you exceed a total of 10 meters or 33 feet where possible to avoid voltage drop which may result in differing brightness from one end to the other.

If your application needs more than the maximum run length, you can wire strips in parallel (homerun the power back to the DMX controller instead of just adding to the existing strip). A 24-volt DC Power Supply is required to run these LED Strip Lights. Total the entire installed wattage and then add 10-15% overhead. Brand-name Mean Well power supplies that have proven to last and deliver high quality for years and can also be purchased in our store.

Weight N/A
Dimensions N/A
Type

RGB IP22 Indoor, RGBW IP22 Indoor, RGB IP65 Indoor/Outdoor, RGBW IP65 Indoor/Outdoor

Specifications

RGB Indoor RGBW Indoor RGB Indoor/Outdoor RGBW Indoor/Outdoor

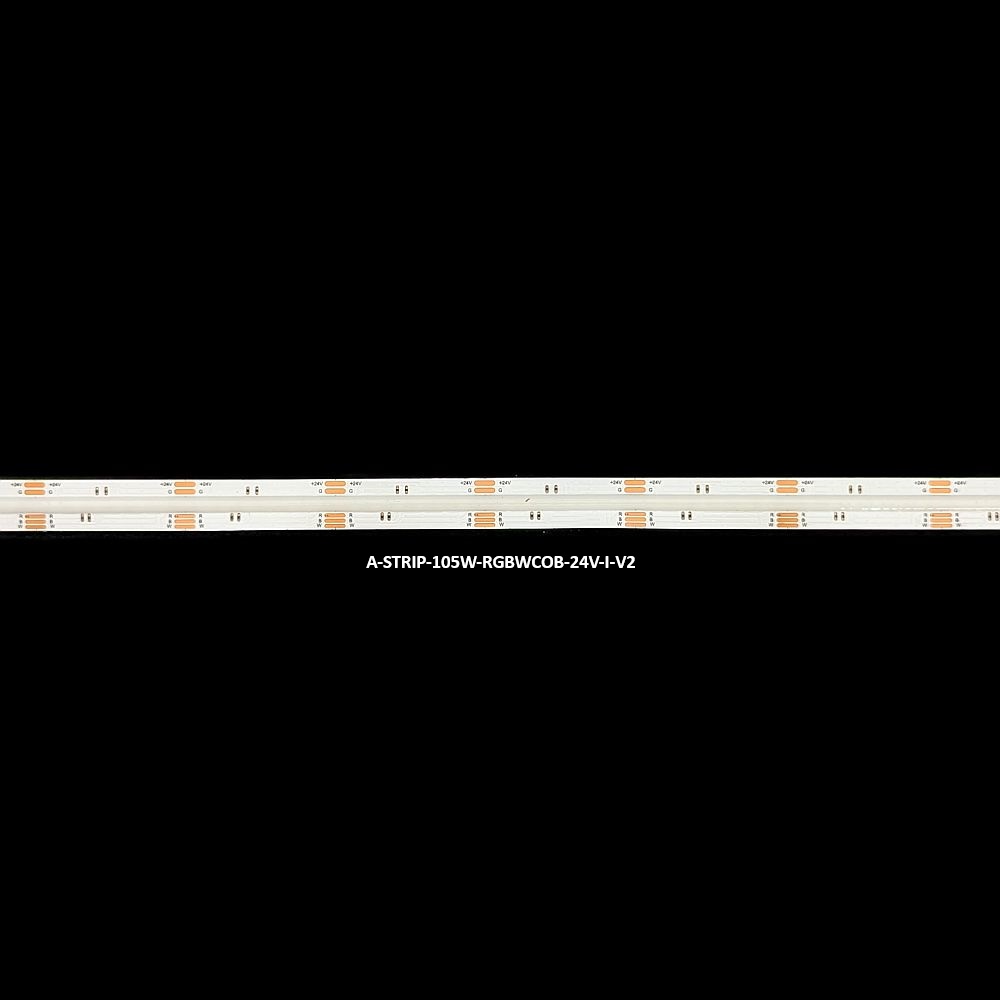

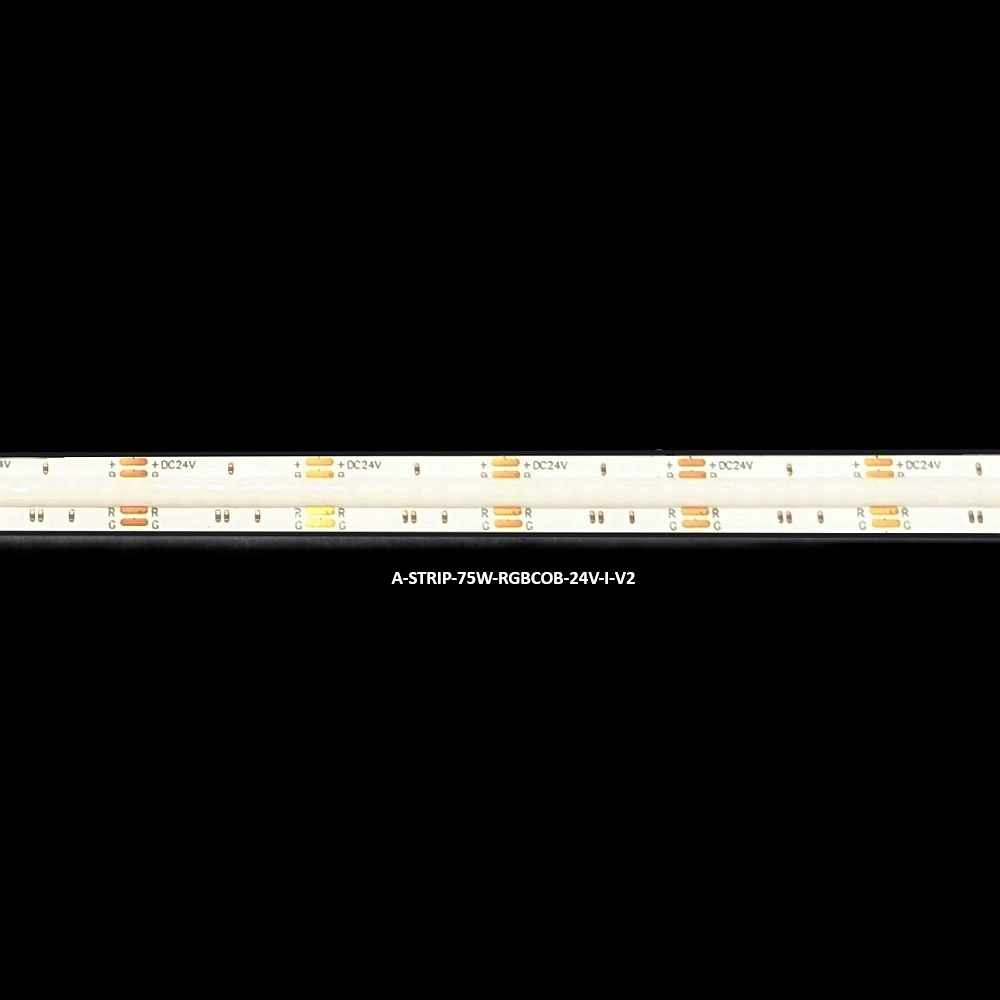

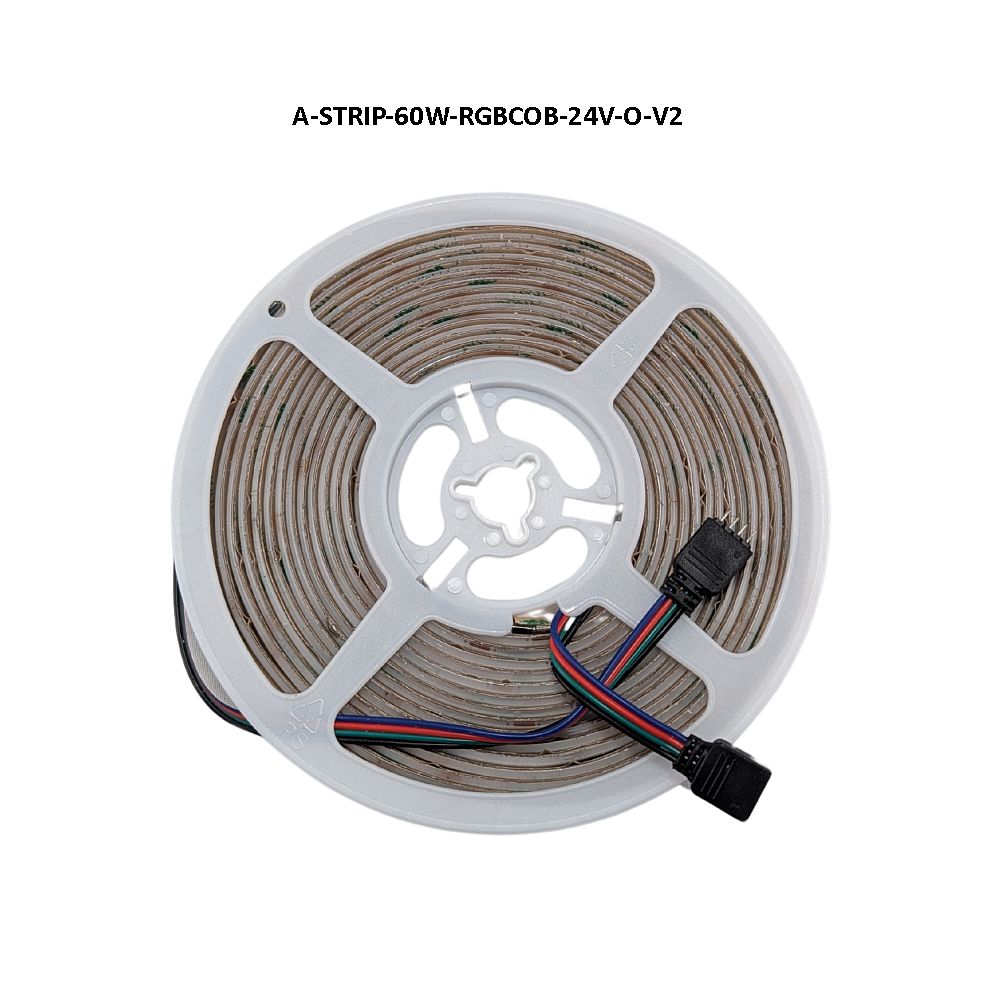

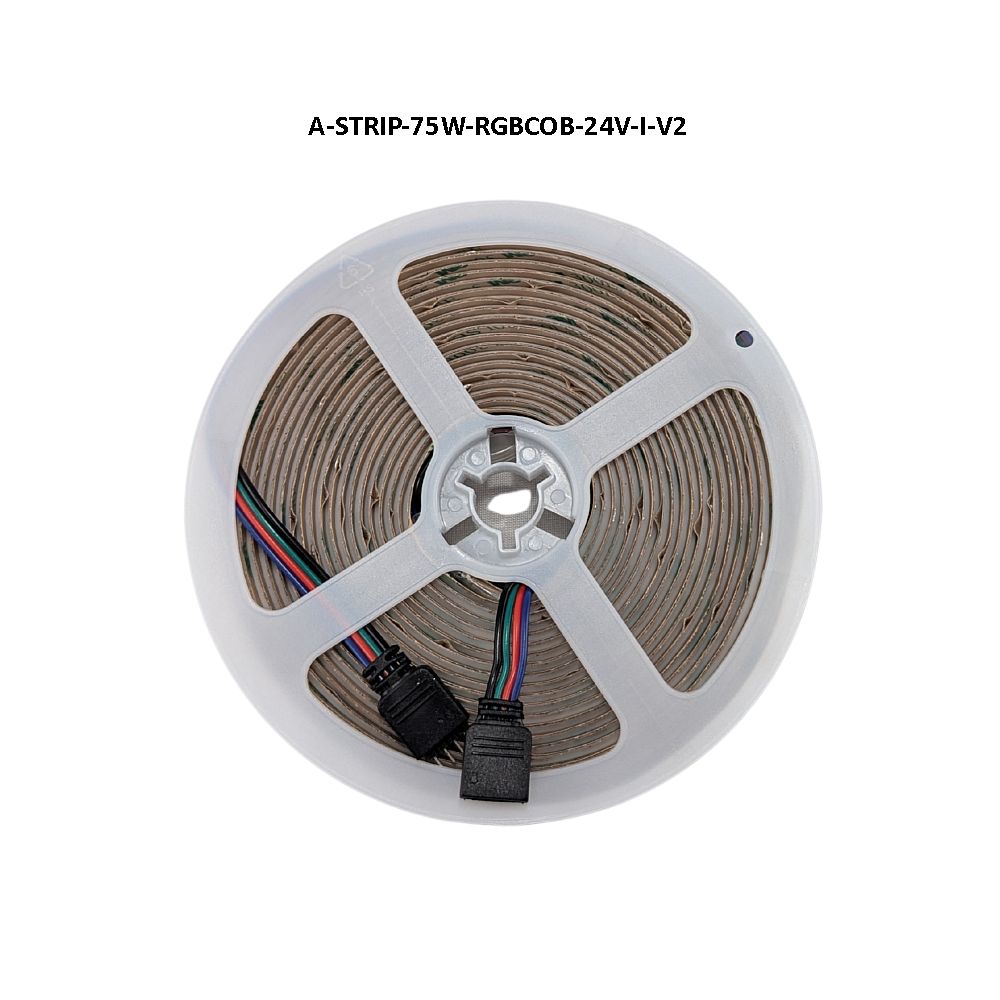

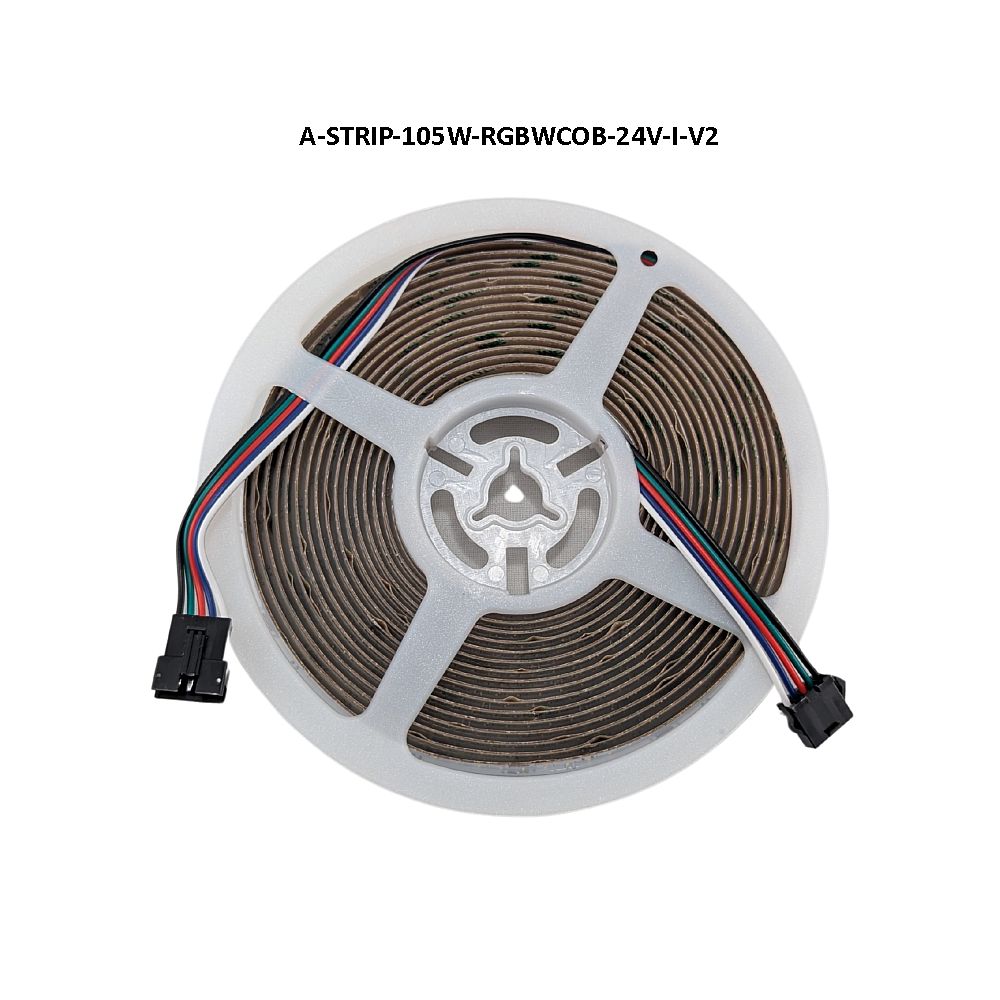

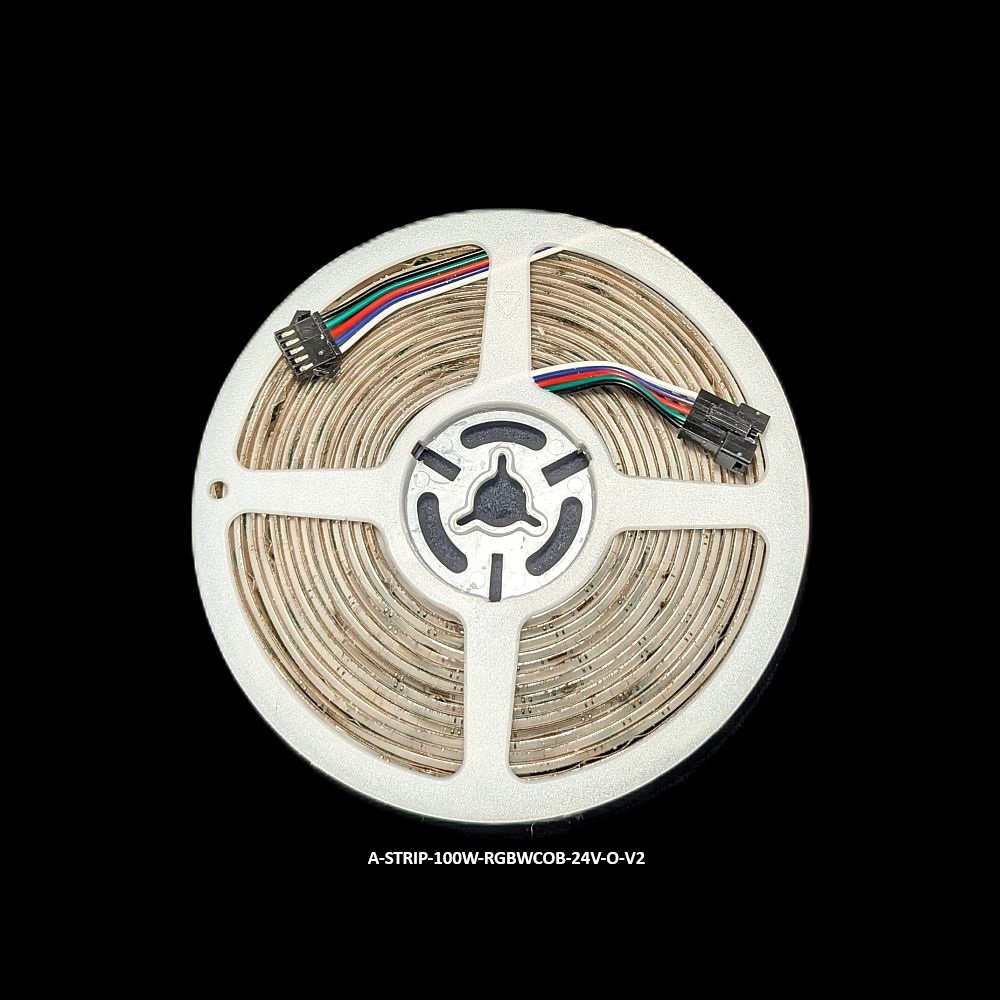

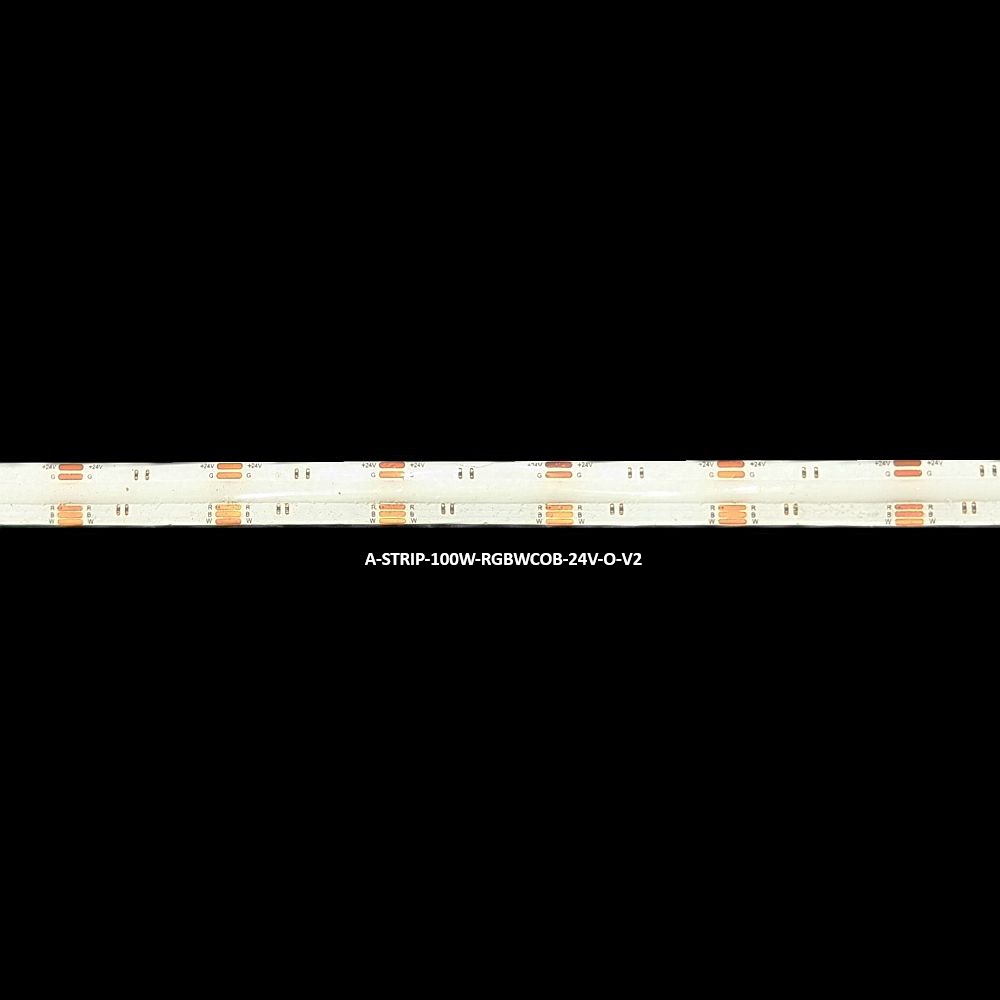

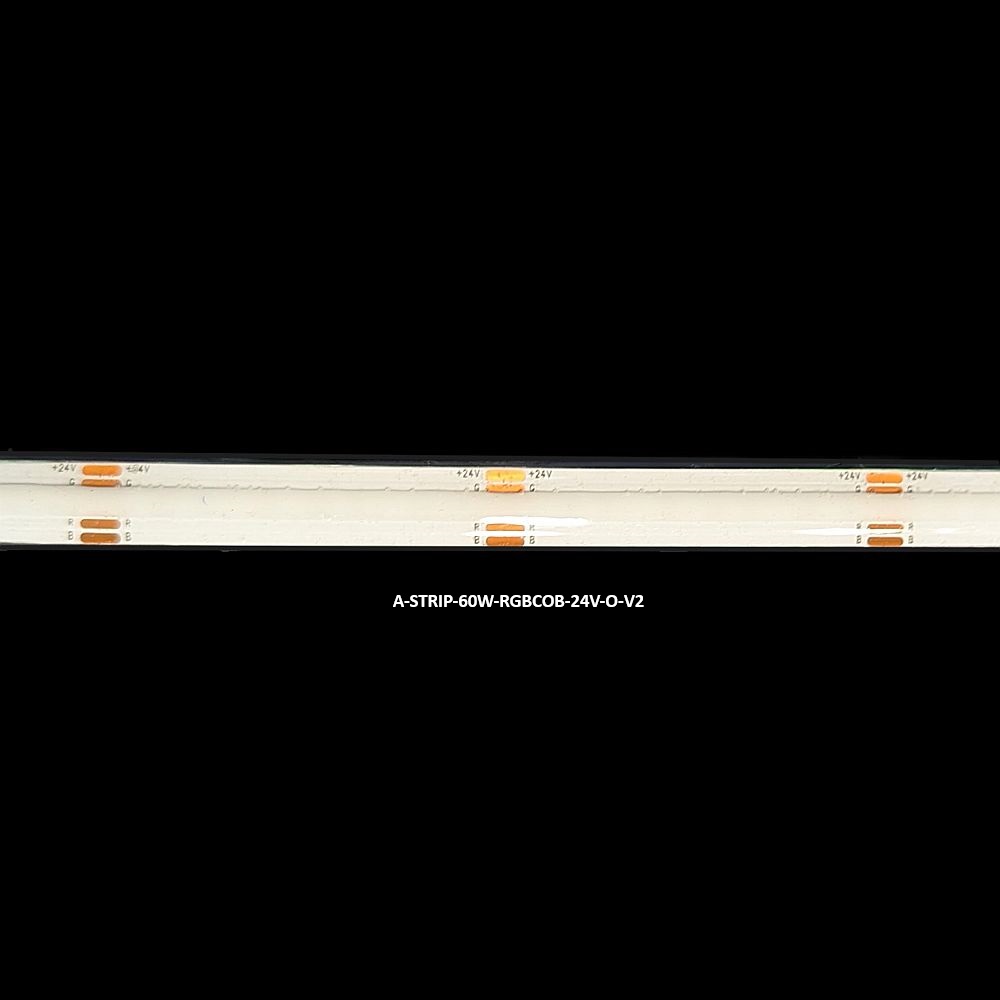

SKU A-STRIP-75W-RGBCOB-24V-I-V2 A-STRIP-105W-RGBWCOB-24V-I-V2 A-STRIP-60W-RGBCOB-24V-O-V2 A-STRIP-100W-RGBWCOB-24V-O-V2
Voltage 24v 24v 24v 24v
Total Wattage 75w 105w 60w 100w
Length 5M (16.4ft) 5M (16.4ft) 5M (16.4ft) 5M (16.4ft)
LED Quantity 2,520 – 840 LEDs per meter 3,920 – 784 LEDs per meter 2,400 – 480 LEDs per meter 4,480 – 896 LEDs per meter
Power 15 watts per meter 21 watts per meter 12 watts per meter 20 watts per meter
Weather Rating IP22 – Protected from touch & objects greater than 12 mm. Indoor use only. IP22 – Protected from touch & objects greater than 12 mm. Indoor use only. IP65 – Protected against water jets from any angle. Do not submerge. Indoor/Outdoor use. IP65 – Protected against water jets from any angle. Do not submerge. Indoor/Outdoor use.
Width 10mm 12mm 10mm 12mm
Color Rendering Index >80 Ra >80 Ra >80 Ra >80 Ra
Brightness 750 Lumens per meter 700 Lumens per meter 600 Lumens per meter 800 Lumens per meter
White LED Temperature 4000K 4000K
Warranty 3 Years 3 Years 3 Year 3 Years
