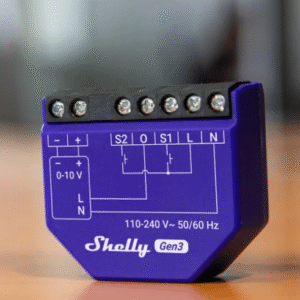

Shelly 0/1-10V PM Dimmer Gen3

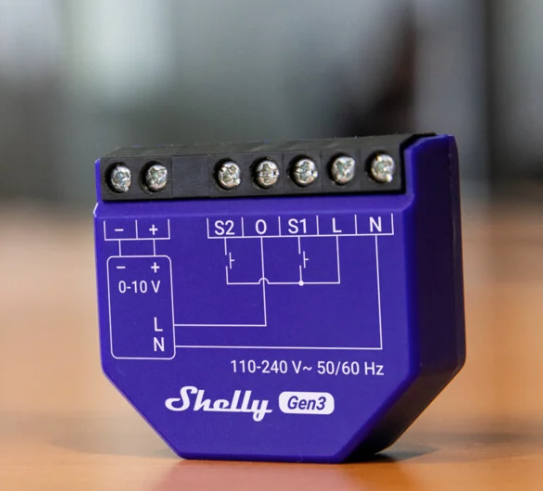

Shelly 0/1-10V PM Dimmer Gen3 - Image 2

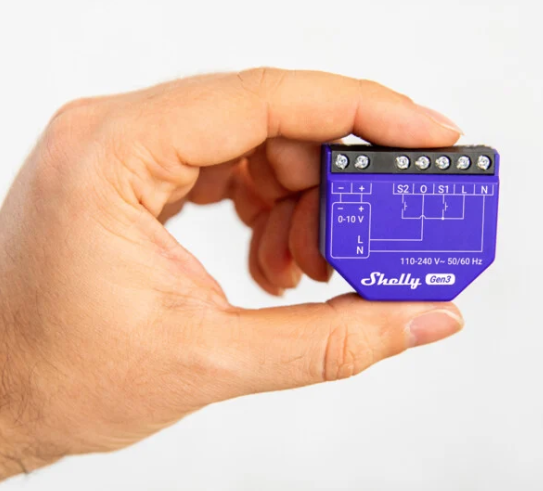

Shelly 0/1-10V PM Dimmer Gen3 - Image 3
, ,

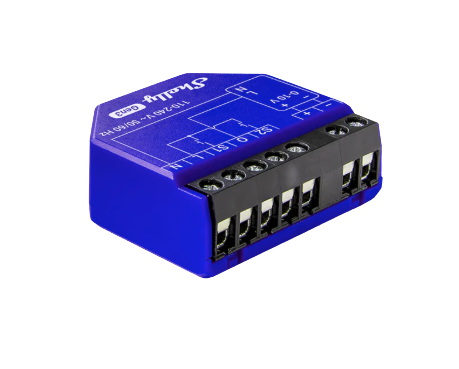

Shelly 0/1-10V PM Dimmer Gen3

$26.99

Shelly Dimmer 0/1-10V PM Gen3 (the Device) is a smart dimming controller which allows remote control dimming drivers through a mobile phone, tablet, PC, or home automation system. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services. The device is a current sourcing controller and provides support for 0-10V and 1-10V types of drivers.

Availability: In stock

SKU: Shelly-01-10V-PM-Dimmer-Gen3 Categories: , ,

Smart dimming controller with power measurement. Provides support for 0-10V and 1-10V types of drivers.

Functionality:

  • Bluetooth: The Device complies the Bluetooth standard and can connect with other Bluetooth devices to exchange data in short range.
  • BLE Gateway: Facilitates communication between BLE and Wi-Fi-enabled devices.
  • Wi-Fi: The Device can connect to a wireless network.
  • Wi-Fi Range extender: Retransmits the Wi-Fi signal and extends its reach.
  • Scripting: Allows creating automation scenarios through scripts.
  • Basic Schedules: Supports weekly schedules and routines, including setting of brightness, transition duration, and flip value of the dimming signal.
  • Аdvanced Schedules: Supports detailed schedules and routines throughout the year with a broad range of time adjustments from seconds to months, including setting of brightness, transition duration, and flip value of the dimming signal.
  • Shelly Plus Add-On compatible: The Device supports connection with the sensor interface to the Shelly Plus devices.
  • Auto on/off timers: Enables auto on/off timer setting.
  • Local actions: Allows creating automation scenarios within the local Wi-Fi network, including setting of brightness, transition duration, and flip value of the dimming signal.
  • Webhooks: Supports automation through lightweight, event-driven communication with other devices.
  • Compatibility: Highly compatible with 3rd Party home automation systems.
  • No need for hub: Ready for use locally or remotely via Shelly Smart Control or 3rd Party systems.
  • Activity log: Stores detailed history of events.
  • KVS (Key-value storage): KVS service provides a basic persistent storage of key-value pairs.
  • Customizable thresholds and offsets for temperature, humidity and light when/if used with Plus Add-on
  • Safety: Оver current/voltage/power protections
  • Power measurement: Precise monitoring of energy consumption. Information about voltage (V), current (A) and consumption (W) is displayed.
  • Diverse driver integration: Supports 0-10V and 1-10V types of drivers (lights, motors, valves, etc.).
  • Night Mode: Enables to set a specific brightness of input lights during nighttime.
    • If night mode brightness < min_brightness_on_toggle, then min_brightness_on_toggle is applied
  • Switch/Button input mode: Allows flexible input control through switches and/or buttons
    • One button dimming control
    • Dual button dimming control
  • Transition duration: Controls the time for dimming from 0 to 100 % on toggle On and from 100 to 0% on toggle Off.
  • Minimum brightness on toggle On: Brightness level (in percent) applied when there is a toggle On and current brightness is lower than ‘Min brightness on toggle’. Default is 3%. Not applied when explicit (custom) transition is defined in Schedules and Actions.
  • Min/Max brightness: Reframes the range of the dimming signal to get more precise brightness control on the output.
  • Button fade rate: Controls how quickly the output brightness changes while holding the button(s). Default is 3x.
  • Button presets: State to be applied on double-push (double-click) event. Default value is 100%
  • Virtual components: A special set of components that do not exist in the device initially and are created dynamically by the user.
Weight 1 lbs
Dimensions 5 × 5 × 2 in

Specifications

Quantity Value
Physical
Size (HxWxD): 38.5×43.5x17mm / 1.52×1.71×0.67in
Weight: 28.5 g / 0.99 oz
Screw terminals max torque: 0.4 Nm / 3.5 lbin
Conductor cross section: 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules)
Conductor stripped length: 5 to 6 mm / 0.20 to 0.24 in
Mounting: Wall console/behind wall/ceiling construction
Shell material: Plastic
Shell color: Shell: Pantone 2736C (blue)

Print: White
Connector color: Black
Environmental
Ambient working temperature: -20 °C to 40 °C / -5 °F to 105 °F
Humidity: 30 % to 70 % RH
Max. altitude: 2000 m / 6562 ft
Electrical
Power supply: 110-240 V~ 50/60 Hz
Power consumption: < 1.5 W
Neutral not needed: No
0-10V/1-10V voltage control type: Current sourcing
External protection: 16 A, tripping characteristic B or C,
6 kA interrupting rating,
Energy limiting class 3
Output circuits ratings
Max. switching voltage: 240 V~
Max. switching current: 13 A
Max. control current: 35 mA
Sensors, meters
Voltmeter (AC): 110 V – 240 V
Voltmeter accuracy: ±10 %
Ammeter (AC): 50 mA – 16 A
Ammeter accuracy: ±10 %
Power and energy meters:
  • Active and apparent power
  • Active and apparent energy
  • Power factor
Measurement data storage: No
Internal-temperature sensor: Yes
Radio
Wi-Fi
Protocol: 802.11 b/g/n
RF band: 2401 – 2495 МHz
Max. RF power: < 20 dBm
Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions)
Bluetooth
Protocol: 4.2
RF band: 2400 – 2483.5 MHz
Max. RF power: < 4 dBm
Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions)
Microcontroller unit
CPU: Shelly ESP32 C3
Clock frequency: 40 Mhz
Flash: 8 MB
Firmware capabilities
Schedules: 20
Webhooks (URL actions): 20 with 5 URLs per hook
Scripting: Yes
MQTT: Yes
Advanced schedules: Yes
KVS (Key-Value Store): Yes

Use Cases

  • Control brightness of dimmable lights within the 0-10 V range to set the perfect brightness.
  • Create smart schedules to have lights automatically adjust their brightness throughout the day.
  • Retrofit your existing lighting system with the Dimmer 0/1-10V PM Gen3 and continue using your current switches.
  • Sync your lights with sunrise and sunset times easily using smart schedules.
  • Activate a night mode for reduced brightness during nighttime hours.
  • Integrate the Dimmer 0/1-10V PM Gen3 with third-party systems like Home Assistant, Google Home, Alexa, and SmartThings for expanded control options.
  • Utilize the device to dim lights up or down with a single or double button press.
  • Monitor and measure power usage of connected lights for energy management.
