Axion High Density LED Strip Tape V2

$30.00$39.00

Now available in tunable white with dedicated 1800K and 6000K LEDs.

Axion Lighting’s new version 2 high density LED strips give you a cost effective but performant solution for installers looking to add either tunable white, RGB, or RGBW accent lighting to any project. These traditional high-density strips produce a crisp, clean, bright light, adding to the ambiance of any space.

SKU: N/A Categories: ,

Introducing our new and improved version 2, high density LED strips. We took everything that was great about our V1 strips and improved it with a longer, 3-year warranty, upgraded 3M adhesive backing, new quick connector ends on the RGB and RGBW strips along with longer 8-inch wire leads.

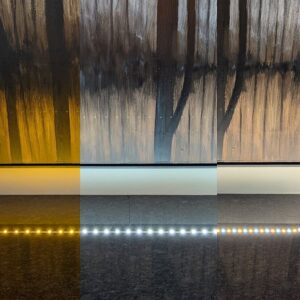

Best of all, we’ve heard your inquiries and now have a tunable white LED strip with dedicated 1800K and 6000K LEDs so you can get the perfect balance of color temperature throughout the day and night. These strips pair perfectly with any system capable of modifying the color temperature to the natural circadian rhythm of the day.

For complete details, please check out the “Specifications” tab. All of our tape light LED strips feature the following:

  • 3M adhesive backing
  • 8-inch wire leads on both ends
  • Quick connectors for easy linking of multiple strips without soldering or crimp connectors on RGB and RGBW strips
  • Longer, 3-year warranty

These traditional high-density strips provide a great value on all types of indoor projects where the higher output COB strips might not be needed.

Use cases include soffits, general accent lighting, back-lighting TVs or monitors, stair lighting, shelf lighting, toe kicks, under cabinets, coves, and signs.

For custom lengths, the LED strips can be cut where marked on the solder pads. We recommend the use of 16-20 gauge wire for LED strip home runs. It is not recommended you exceed a total of 10 meters or 33 feet where possible to avoid voltage drop which may result in differing brightness from one end to the other.

If your application needs more than the maximum run length, you can wire strips in parallel (homerun the power back to the DMX controller instead of just adding to the existing strip). A 24-volt DC Power Supply is required to run these LED Strip Lights. Total the entire installed wattage and then add 10-15% overhead. Brand-name Mean Well power supplies that have proven to last and deliver high quality for years and can also be purchased in our store.

Weight 1 lbs
Dimensions 6 × 6 × 2 in
Type

RGB IP22 Indoor, RGBW IP22 Indoor, Tunable White Indoor

Specifications

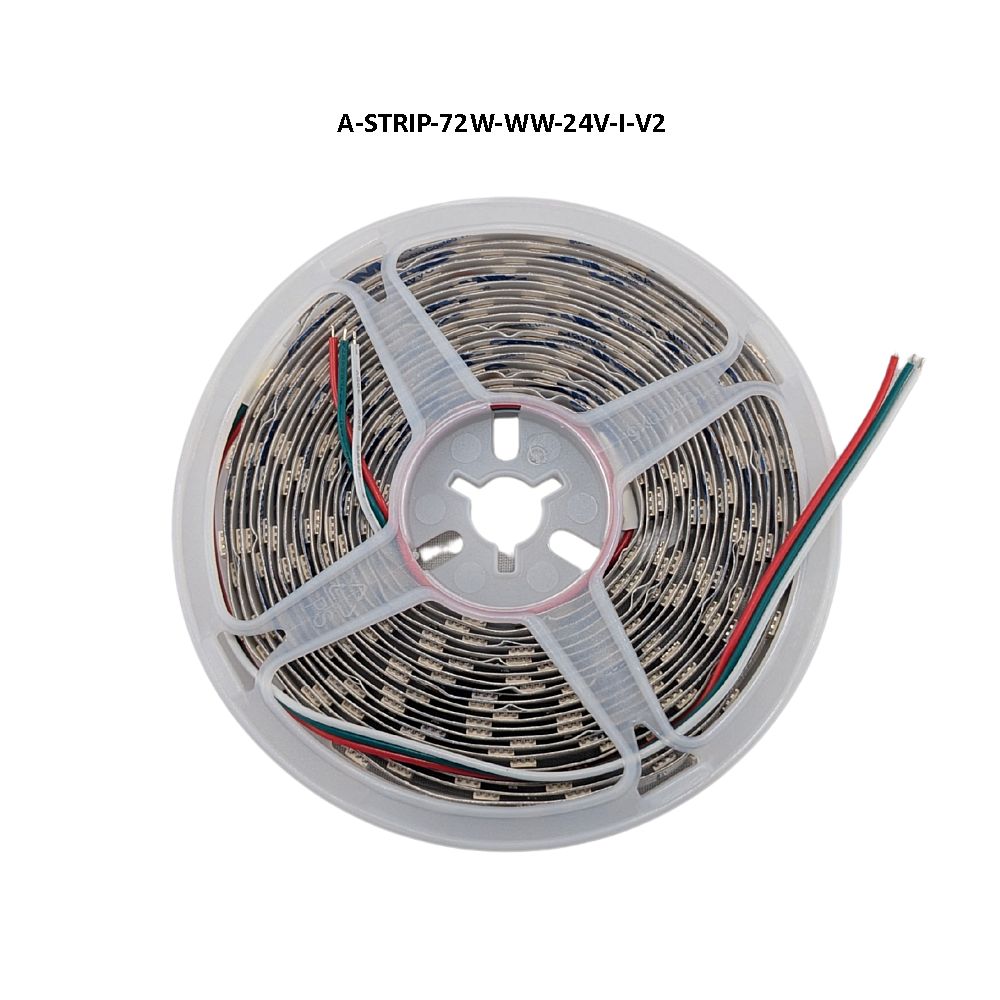

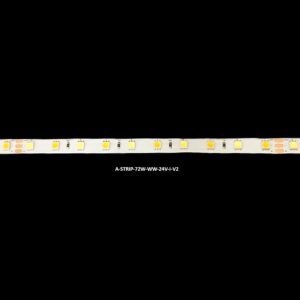

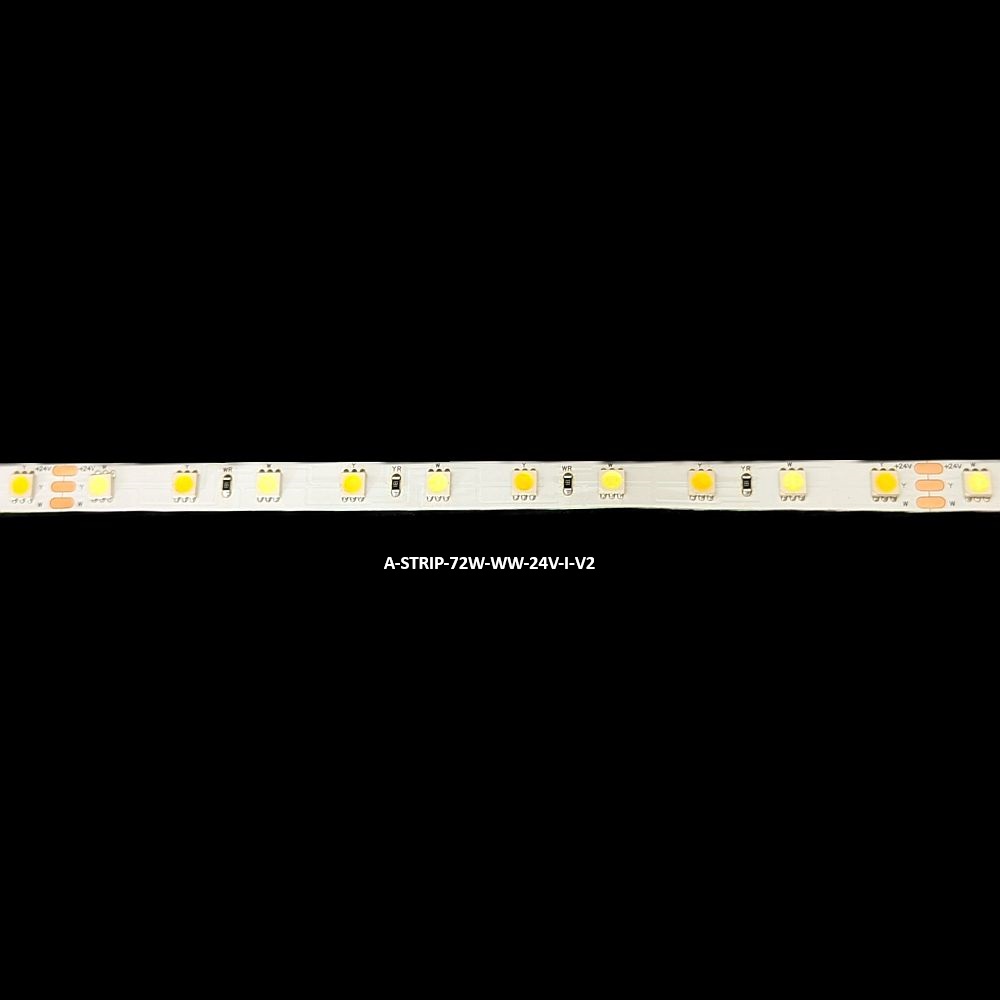

Tunable White LED Strip

  • Voltage: 24V
  • Total Wattage: 72W
  • Length: 5M (16.4 ft)
  • LED Quantity: 300, 60 LEDs per meter
  • Power: 14.4 watts per meter
  • White LEDs: 1800 and 6000 Kelvin
  • IP22 weather rating – Protected from touch by fingers and objects greater than 12mm; indoor use.
  • Width: 10mm
  • Color Rendering Index: >80 Ra
  • Warranty: 3 years
  • Backing: 3M adhesive tape

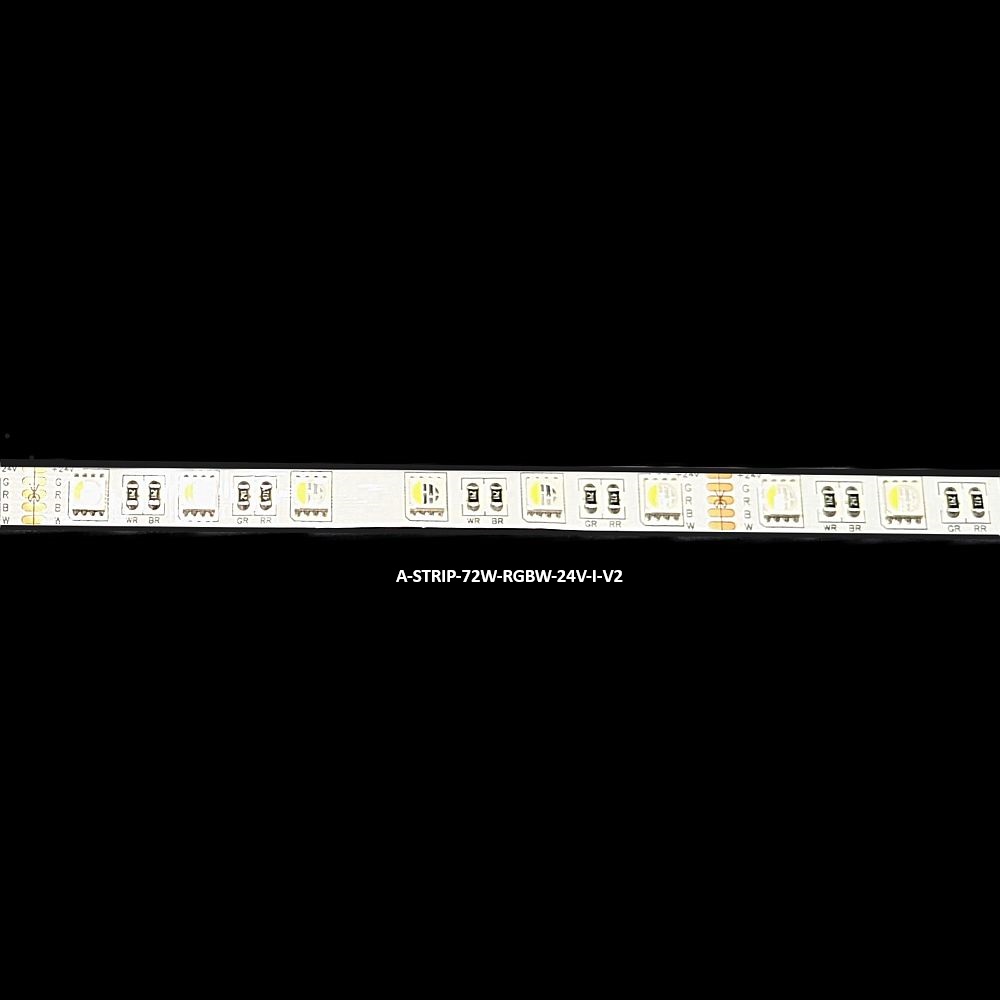

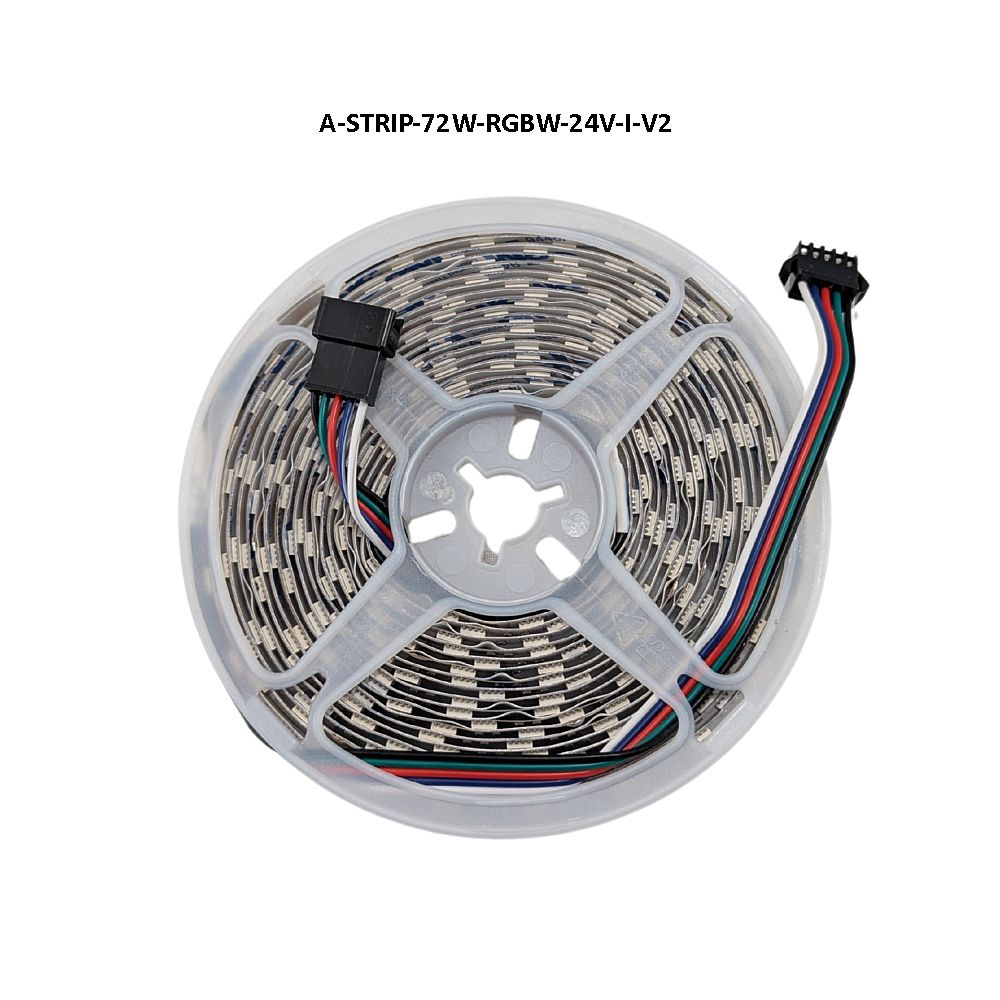

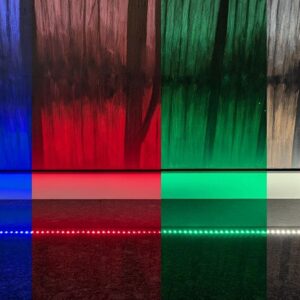

RGBW LED Strip

  • Voltage: 24V
  • Total Wattage: 72W
  • Length: 5M (16.4 ft)
  • LED Quantity: 300, 60 LEDs per meter
  • Power: 14.4 watts per meter
  • White LED: 4000 Kelvin
  • IP22 weather rating – Protected from touch by fingers and objects greater than 12mm; indoor use.
  • Width: 10mm
  • Color Rendering Index: >80 Ra
  • Warranty: 3 years
  • Backing: 3M adhesive tape

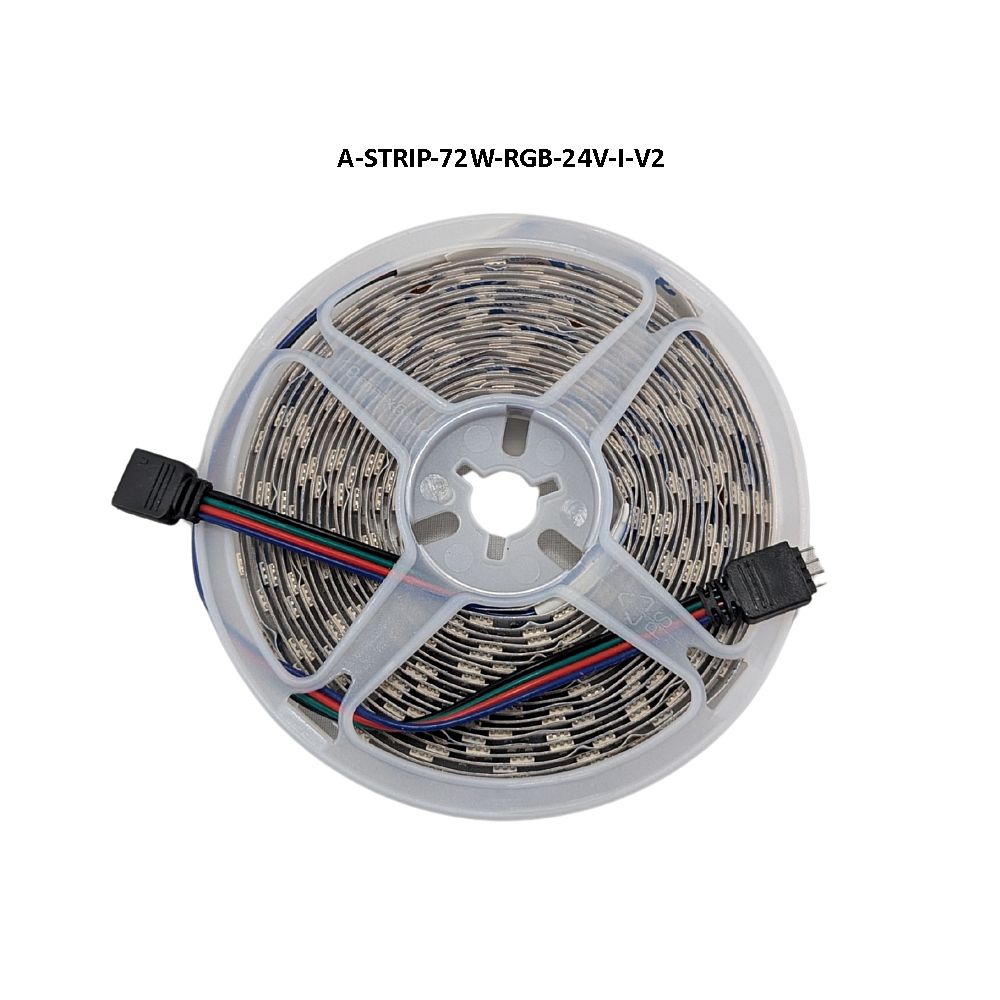

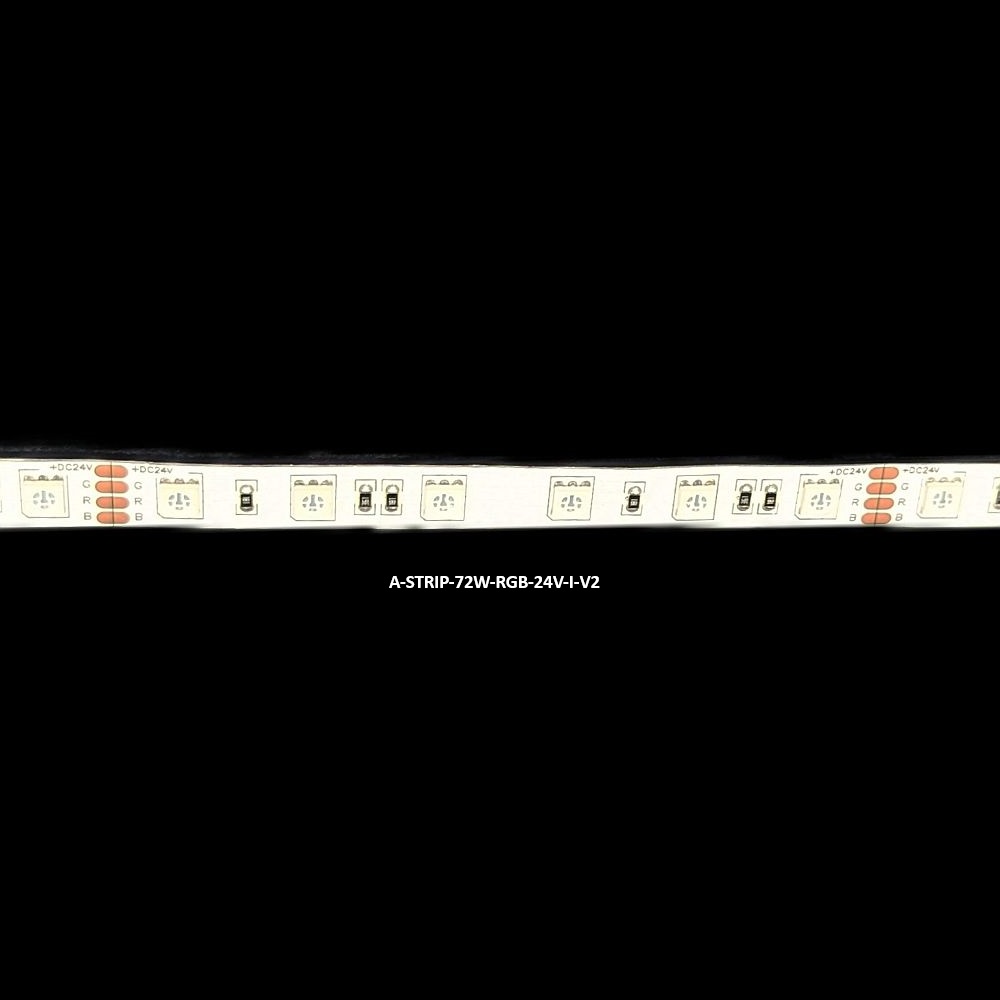

RGB LED Strip

  • Voltage: 24V
  • Total Wattage: 72W
  • Length: 5M (16.4 ft)
  • LED Quantity: 300, 60 LEDs per meter
  • Power: 14.4 watts per meter
  • IP22 weather rating – Protected from touch by fingers and objects greater than 12mm; indoor use.
  • Width: 10mm
  • Color Rendering Index: >80 Ra
  • Warranty: 3 years
  • Backing: 3M adhesive tape
