4 Channel DIN Rail DMX Decoder V2

$59.00

4 Channel constant voltage DMX512 & RDM LED decoder with standalone functionality, six PWM frequency selection, linear or logarithmic dimming, numeric display and 5-year warranty in a new DIN rail mount form factor.

Availability: In stock

SKU: A-D4-DMXD Categories: ,

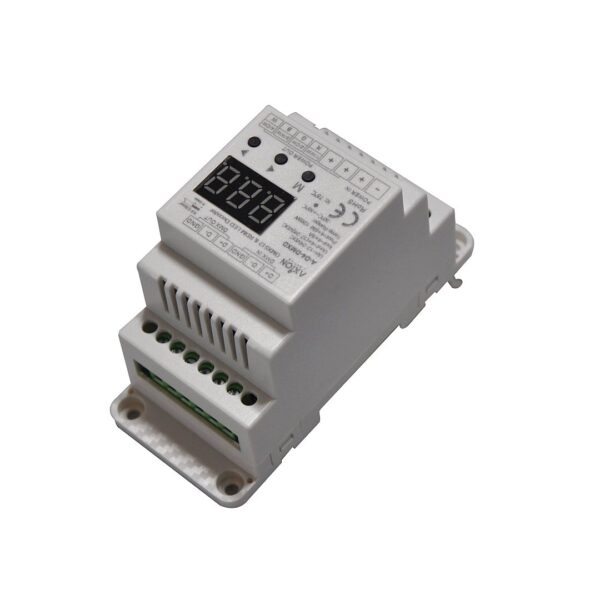

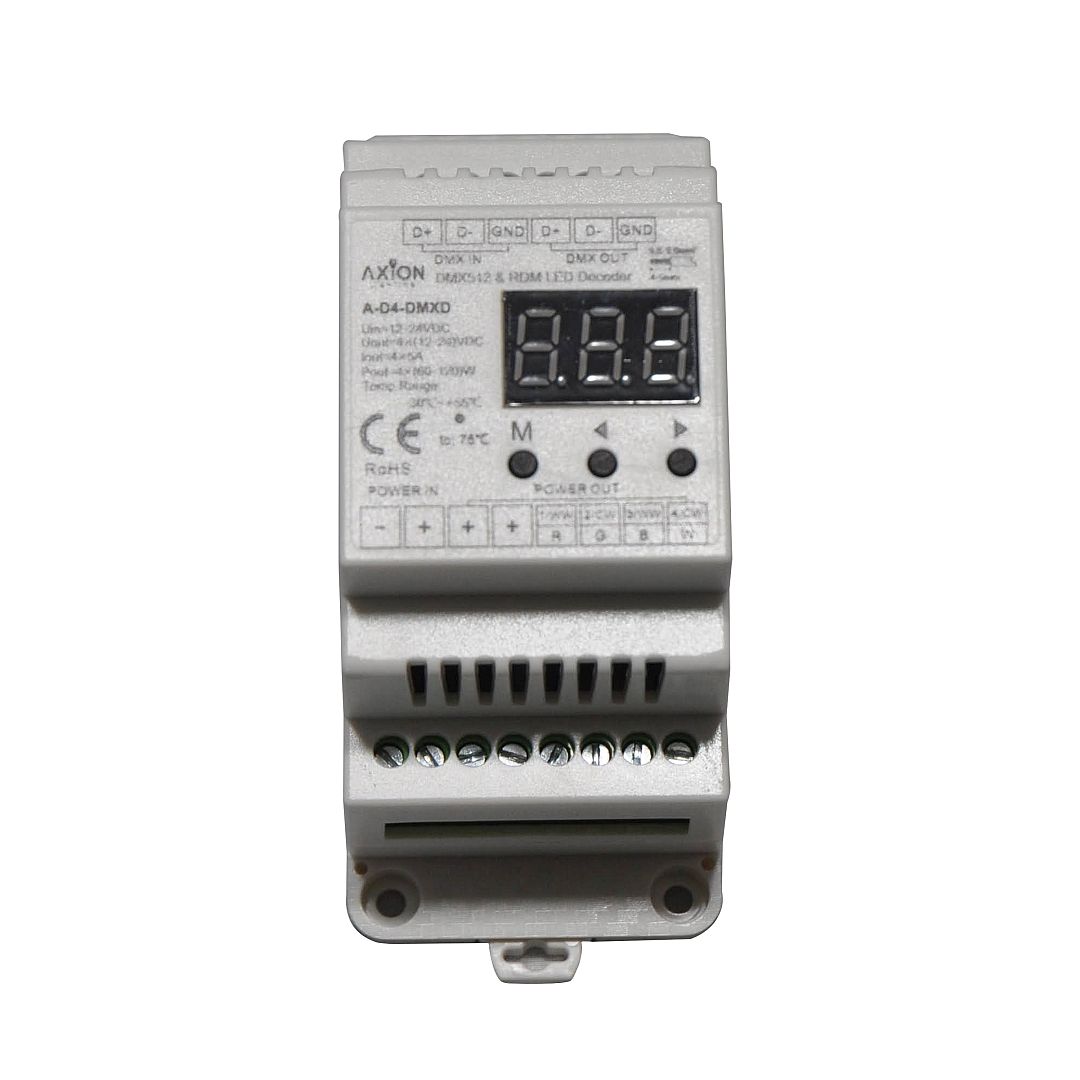

The Axion Lighting 4 Channel DMX Decoder offers a perfect way to control single color, tunable white, RGB, or RGBW fixtures. Now available in a DIN rail mount form factor!

Features

  • Fully compliant with the DMX512 standard protocol.
  • No DIP switches! Use the integrated buttons and digital display to configure the DMX address.
  • Supports RDM functionality for those DMX masters or controllers that take advantage of this enhanced protocol.
  • 16 bit (65536 levels) or standard 8 bit (256) level selection.
  • PWM dimming frequency selection: 500 / 1000 / 2000 / 4000 / 8000 / 16000 Hz options for reduced power noise and LED flickering.
  • Logarithmic or linear dimming curve selectable.
  • Over-heat, over-load and short circuit protection with automatic recovery.
  • Automatic DMX signal detection helps to know if there are line issues.
  • Default Output Level setting allows you to set the light level if the DMX signal is lost.
  • CE, EMC, and LVD certified.
  • 5 year warranty

NOTE: When in 16-bit mode, the DMX addresses are cut in half, 512 -> 256 since it is now doubling the bit depth.

Weight 2 lbs

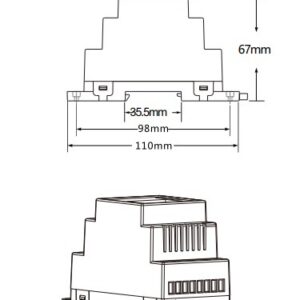

Dimensions 6 × 6 × 6 in

Specifications

  • Input Voltage: 12 – 24 volts DC
  • Input Current: 20.5A
  • Output Voltage: 4 x (12 – 24) VDC
  • Output Current: 4 channel, 5 amps per channel max
  • Output Type: Constant voltage
  • Operating Temperature: -30C – +55C
  • Operating Relative Humidity Max: 90%
  • EMC Standards: ETSI EN 301 489-1 V2.2.3 and ETSI EN 301 489-17 V3.2.4
  • Safety Standards: EN 62368-1:2020+A11:2020
  • Certifications: CE, EMC, LVD

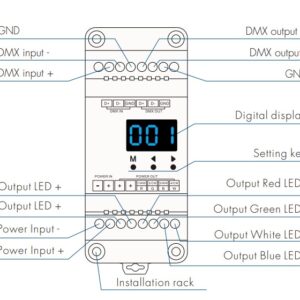

Installation Instructions

Operating Modes

  • Short press the M key to switch between DMX decoder mode and RGB controller mode.
  • Press the < or > key to adjust the parameter’s value.
  • Long press MODE and > for 2 seconds to start the quick self-test feature.
  • Long press the < and > key for 2 seconds to restore the unit to factory defaults.

Operation Settings

  • Long press M and < key at the same time for 2 seconds. Short press M key to switch between settings:
    • Decode Mode
      • Short press < or > key to switch between 1/2/4 channel decode mode (d-1, d-2, or d-4). When set as 1 channel mode, the decoder will only occupy a single DMX address and dim all the outputs at the same level. The same is true for 2 channel mode where channels 1/3 and 2/4 will dim together.
    • Grey Level
      • Short press < or > key to switch between 8bit (b08) or 16 bit (b16).
    • Output PWM frequency
      • Short press < or > key to switch between 500Hz (F05), 1000Hz (F10), 2000Hz (F20), 4000Hz (F40), 8000Hz (F80), or 16000Hz (F16).
      • The higher the PWM frequency, the lower the output current however it’s useful to eliminate power noise and reduce visible flickering.
    • Output brightness curve
      • Short press < or > key to switch between Linear Curve (C-L) or logarithmic curve (C-E)
    • Default output level
      • Short press < or > key to change the default 0-100% level (d00 to dFF) when no DMX signal input is detected.
    • Automatic blank screen
      • Short press < or > to enable (bon) or disable (bof) the automatic blank screen.
  • To exit the menu, long press the M key for 2 seconds or wait 10 seconds with no button presses.

Stand-alone Mode

  • Short press the M key. Once the display shows P01 through P30, it is now in stand-alone mode.
  • Press the < or > key to switch through diagnostic modes.
