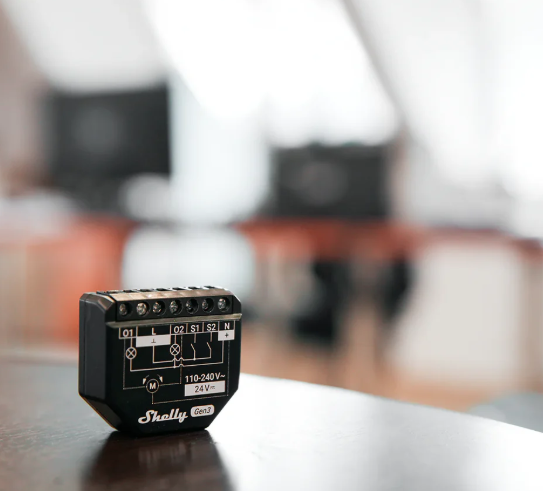

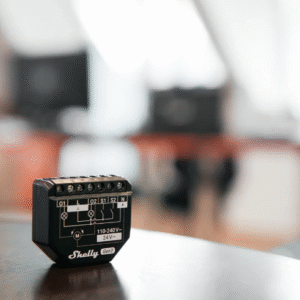

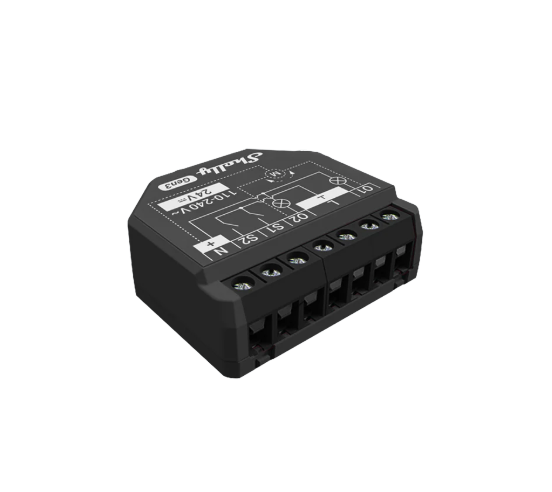

Shelly 2PM Gen3
Shelly 2PM Gen3 - Image 2
Shelly 2PM Gen3 - Image 3
Shelly 2PM Gen3 - Image 4
, ,

Shelly 2PM Gen3

$33.99

Shelly 2PM Gen3 is a small form factor 2-channel smart switch with power measurement and cover control, which allows remote control of electric appliances through a mobile phone, tablet, PC, or home automation system. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services. The device also has improved processor and increased memory compared to its predecessor. The device supports Venetian blinds.

Shelly 2PM Gen3 can be accessed, controlled and monitored remotely from any place where the User has internet connectivity, as long as the device is connected to a Wi-Fi router and the Internet.

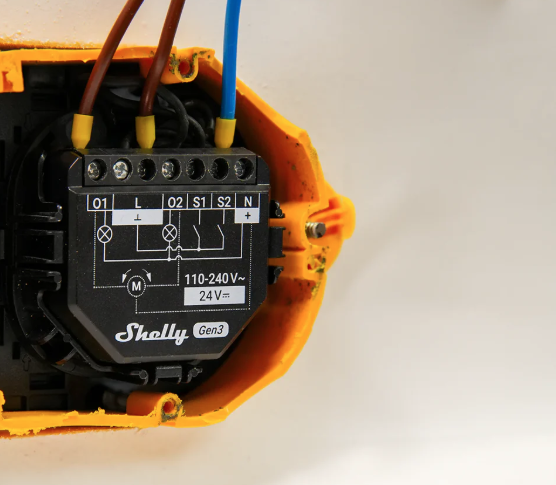

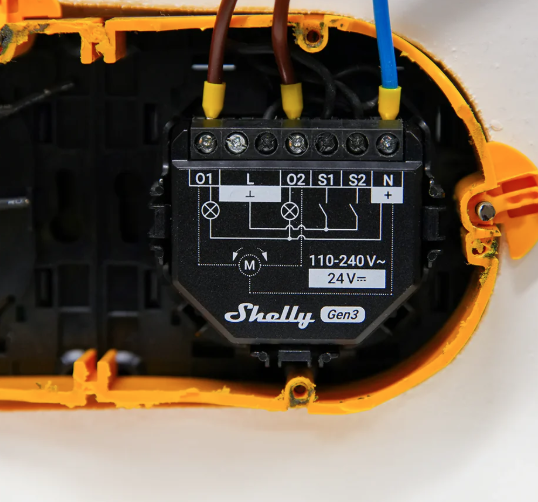

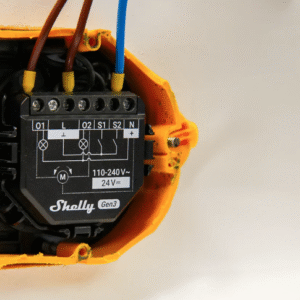

It can be retrofitted into standard electrical wall boxes, behind power sockets and light switches or other places with limited space.

Shelly 2PM Gen3 has embedded Web Interface which can be used to monitor and control the device, as well as adjust its settings.

Availability: In stock

SKU: Shelly-2PM-Gen3 Categories: , ,

One Device, Different Possibilities
Remotely control and monitor two different electrical circuits, or roller shutters, blinds, and other bi-directional motors from anywhere. Features power monitoring.

Functionality

  • Smart Switch with Power Measurement: Acts as a smart switch with the added capability of measuring power consumption, allowing you to monitor the energy usage of connected appliances.
  • Compact Design: Designed as a small form factor switch, making it suitable for retrofitting into standard electrical wall boxes, behind power sockets, light switches, or other confined spaces.
  • Remote Control: Enables remote control of electric appliances via a mobile phone, tablet, PC, or home automation system.
  • Local and Cloud Control: Can function independently in a local Wi-Fi network and can also be operated through cloud home automation services.
  • Improved Processor and Memory: Upgraded with an improved processor and increased memory for enhanced performance.
  • Remote Access: Allows remote access, control, and monitoring from any location with internet connectivity, provided the device is connected to a Wi-Fi router and the internet.
  • Embedded Web Interface: Features an embedded web interface for monitoring, control, and adjustment of settings.
  • BLE Gateway: Bridge between your Shelly BLU devices and the wider Shelly ecosystem. It receives Bluetooth signals and sends them to the cloud or locally to another non-bluetooth device.
  • Wi-Fi Range extender for IoT devices: A Wi-Fi extender is employed to expand the reach of your Wi-Fi network by receiving your current Wi-Fi signal, enhancing its strength, and then transmitting the enhanced signal over a wider area.
  • Scripting: https://shelly-api-docs.shelly.cloud/gen2/Scripts/ShellyScriptLanguageFeatures/
  • Wide range of integrations: The device can be integrated with 3rd party home systems, documented HTTP API, MQTT(s), Web Hooks over HTTP and HTTPS, UDP
  • KNX: Supports KNXnet/IP communication (Switch mode only with firmware 1.5.0 and later).
  • Schedules: Allows scheduling of complex operations to be executed in predefined time window. Users can specify time windows based on date, time of day, weekdays, hours, minutes and seconds.
  • Virtual Components: https://shelly-api-docs.shelly.cloud/gen2/DynamicComponents/Virtual/
  • Venetian blinds mode: The Device enables remote control of motorized blinds, roller shutters, venetian blinds, awnings, etc. It measures power consumption of the connected device. It is recommended to use only motors with electronic or mechanical limit switches. The motor limit switches must be set correctly before connecting the Device to the motor.
    • Controls position of blinds, rollers, shades, venetian blinds, etc.
    • Controls tilt position of the slats of venetian blinds
Weight 1 lbs
Dimensions 5 × 5 × 2 in

Specifications

Quantity Value
Physical
Size (HxWxD): 37x42x16 ±0.5 mm / 1.46×1.65×0.63 ±0.02 in
Weight: 30 g / 1.06 oz
Screw terminals max torque: 0.4 Nm / 3.5 lbin
Conductor cross section: 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules)
Conductor stripped length: 6 to 7 mm / 0.24 to 0.28 in
Mounting: Wall box
Shell material: Plastic
Shell color: Black
Terminals color: Black
Environmental
Ambient working temperature: -20°C to 40°C / -5°F to 105°F
Humidity: 30% to 70% RH
Max. altitude: 2000 m / 6562 ft
Electrical
Power supply: 110 – 240 V~ / 24 V⎓ ±10%
Power consumption: < 1.4 W
External protection: Tripping characteristic B or C,
16A max. rated current,
min. 6 kA interrupting rating,
energy limiting class 3
Output circuits ratings
Max. switching voltage:
  • 240 V~
  • 30 V⎓
Max. switching current AC: 10 A (per channel), 16 A (total), 18 A (total peak)
Max. switching current DC: 10 A
Sensors, meters
Voltmeter (AC): Yes
Ammeter (AC): Yes
Internal-temperature sensor: Yes
Radio
Wi-Fi
Protocol: 802.11 b/g/n
RF band: 2412 – 2472 МHz
Max. RF power: < 20 dBm
Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions)
Bluetooth
Protocol: 4.2
RF band: 2402 – 2480 MHz
Max. RF power: < 4 dBm
Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions)
Microcontroller unit
CPU: ESP-Shelly-C38F
Flash: 8MB
Firmware capabilities
Schedules: 20
Webhooks (URL actions): 20 with 5 URLs per hook
Scripting: Yes
MQTT: Yes

Use Cases

  • Appliance Control: Use it to remotely control and automate the operation of various electric appliances such as lights, fans, or other devices.
  • Power Monitoring: Monitor the power consumption of connected appliances in real-time. This is useful for understanding energy usage patterns and promoting energy efficiency.
  • Home Automation: Integrate the Shelly 2PM Gen3 into your home automation system to create custom scenes and schedules for your devices.
  • Energy Efficiency: Leverage the power measurement feature to identify energy-hungry appliances and make informed decisions to improve overall energy efficiency in your home.
  • Remote Monitoring: Keep an eye on your devices even when you’re away from home. The remote access feature allows you to monitor and control connected appliances from anywhere with internet connectivity.

Compatibility

Full compatibility
Shelly devices are compatible with Alexa, Google Home, Android and iOS. With the voice assistant, you can command Shelly Plug Play Product with your voice without having a smartphone around.

Shelly Smart Control
Shelly Smart Control is here! One app to control your spaces, energy, consumption, and expenses!
Customize your dashboards, get detailed consumption reports, and stay on top of your electricity bills.
