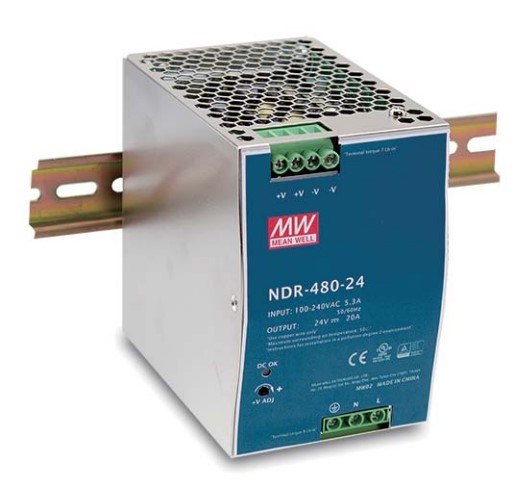

Mean Well 480 Watt DIN Rail Power Supply

$145.00

480W Single Output Industrial DIN RAIL 24-volt power supply with 3-year warranty, universal AC input voltage, short circuit, overload, over voltage and over temperature protections.

Availability: In stock

SKU: NDR-480-24 Categories: ,

The NDR-480-24 is an economical slim 240W DIN rail power supply that can be mounted on any TS-35/7.5 or TS-35/15 mounting rails. The unit adopts a full range AC input from 90VAC to 264VAC automatically with no switch change needed. It is designed with a metal housing that enhances the unit’s power dissipation and has a working efficiency of 92.5%. It also comes equipped with over-load, short circuit, over voltage, and over temperature protections. From a safety standards perspective, this unit has UL, TUV, EAC, BSMI, IS, and IEC approvals.

Features

  • 3-year warranty
  • Universal AC input / full range
  • Built-in active PFC functionality
  • Protections: Short circuit, overload, over voltage, over temperature
  • Free air convection cooling
  • DIN rail mounting
  • UL 508 approved
  • 100% full load burn-in testing
Weight 5 lbs

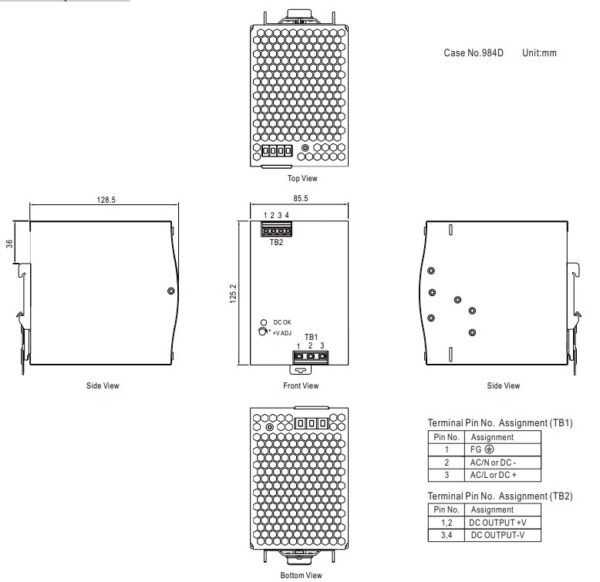

Dimensions 4 × 6 × 6 in

Specifications

Download the full specification sheet.

  • DC Voltage: 24V
  • Rated Current: 20A
  • Current Range: 0-20A
  • Rated Power: 480W
  • Voltage Adjustment Range: 24-28V
  • Voltage Tolerance: +- 1%
  • Input Voltage Range: 90 – 264VAC
  • Input Frequency Range: 47-63Hz
  • Power Factor: >.98/115VAC, >.94/230VAC at full load
  • Efficiency: 92.5%
  • Working Temperature: -20 to +70 C
  • Safety Standards: Ul508 TUV BS EN/EN62368-1, EAC TP TC 004 BSMI CNS14336-1, IS13252(Part1)/IEC60950-1, meets EN60204-1
  • EMC Standards: Compliance to EN61000-4-2,3,4,5,6,8,11, EN55035, EN61000-6-2 (EN50082-2), EN61204-3, BS EN/ BS EN/ BS EN/ BS EN/ BS EN/ heavy industry level, EAC TP TC 020
  • MTBF: 1041600 hours
