The Axion Lighting RGBW COB SPI Pixel Addressable LED strips offer even more enhancements than our popular V2 COB strips. They maintain the same core features such as genuine 3M backing to guarantee good adhesion, 8-inch wire leads on both ends with quick connectors for easy daisy chaining, and our industry leading 3-year warranty.

Now you can control each 3-inch section’s color to achieve incredible effects, style and ambiance previously found only in very high-end installations! Our Pixel strips allow the ultimate flexibility: from simple single-color display to full animations and motion effects. We also took this opportunity to improve the color output and now have a color rendering index greater than 90 Ra.

Since this strip has multiple ICs, there is a wire for 24 volt power, ground, and communication. The reduced footprint means these RGBW strips are narrower (10mm) than the traditional counterpart (12mm) which have individual leads for each color plus positive voltage.

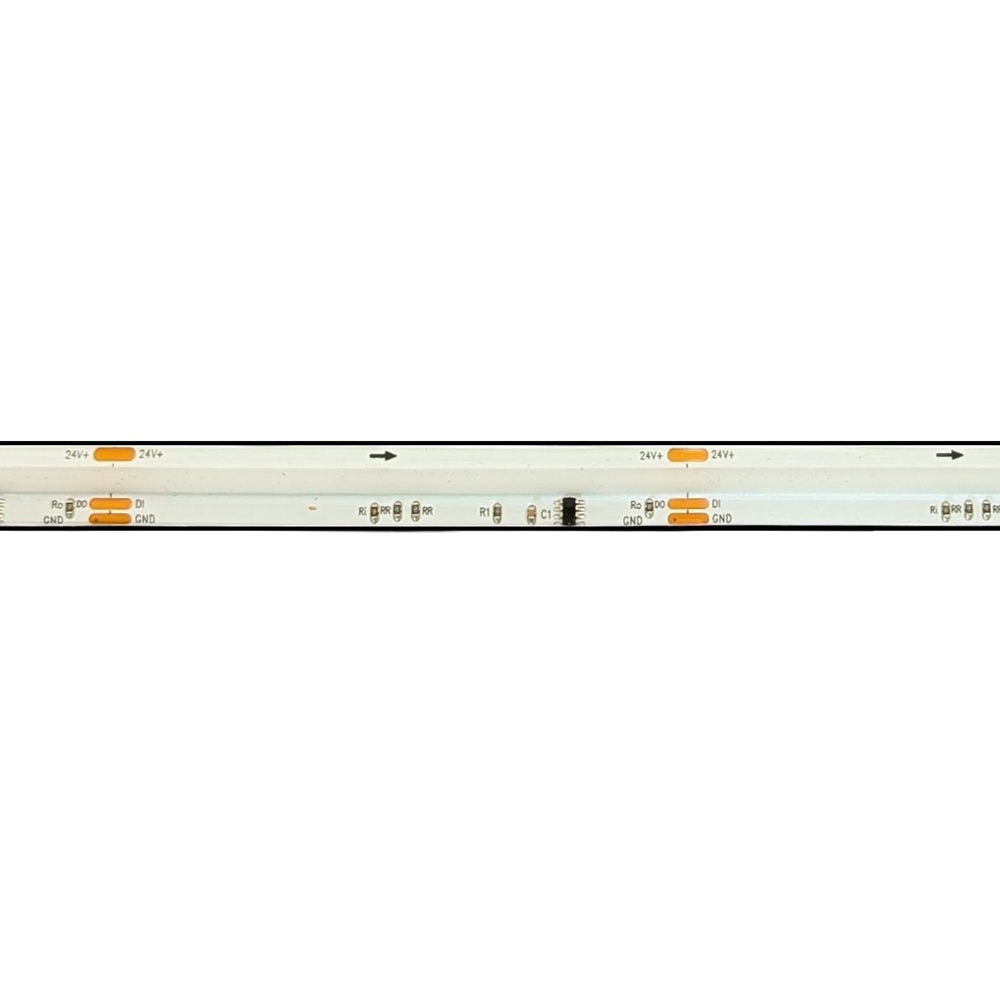

Please note that these strips are directional as indicated by the arrow on the PCB. When linking more than one strip, be sure the arrows all flow in the same way. If connecting more than 2 strips, additional power to the + and – wires will also be required. This can be delivered from the same power supply with a separate home run.

Specifications

• Color Type: RGBW
• White LED Temperature: 4000K
• Voltage: 24 Volt
• LEDs/Meter: 784 LEDs
• Power: 16 watts per meter
• Total Wattage: 80 watts
• Strip Length: 5 meters (16.4 feet)
• Strip Width: 10mm
• Chip Type: WS2814 ICs
• Weather Rating: IP22 – Protected from touch & objects greater than 12 mm. Indoor use only.
• Color Rendering Index: >90 Ra
• Warranty: 3 Years
