Shelly Plus RGBW PM
, ,

Shelly Plus RGBW PM

$31.49

Shelly Plus RGBW PM is a Wi-Fi/Bluetooth-operated RGBW controller. It can be connected like any LED controller and allows the lighting to be controlled directly from a mobile device or tablet. It supports 3 profiles – RGBW, RGB and Lights x 4. In the Lights x 4 profile, different led strips (groups of lights) can be controlled independently. Power measurement functionality allows real time track of the voltage, current and power consumption.

Available on backorder

SKU: Shelly-Plus-RGBW-PM Categories: , ,

The smallest Wi-Fi solution for any LED strips
Make your LED strips smart in one easy step. A compact and versatile RGBW controller designed for effortless control of any LED strips. With support for RGBW, RGB and Light profiles, Shelly RGBW can connect like any LED controller and allows you to manage RGB+W, 4x single color LED strips or any LED dimmable lights directly from your mobile device. Control 12-24 VDC, dim, power measure, and choose from a huge palette of RGB colors. Fast and easy to set up, it is designed to be easily fitted behind a built-in light switch, socket, junction, or electrical box.

Key Features

  • Supports any 12V or 24VDC White (or color), RGB, RGBW LED strips
  • Power measurement
  • 3 lighting profiles for easy customization
  • Adjustable transition duration & fade rate, as well as min/max brightness
  • Independent control for RGB and White: Color brightness and white brightness now can be controlled independently with dimming up/down.
  • Night mode
  • Over-current protection
  • Wi-Fi Range Extender & BLE Gateway
  • Extremely fast processor for immediate reaction – ESP32
  • Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates
  • No hub required! Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it with Alexa, Home Assistant, or your preferred automation platform.
Weight 1 lbs
Dimensions 5 × 5 × 2 in

Specifications

Quantity Value
Physical
Size (HxWxD): 42x37x12 ±0.5 mm / 1.65×1.46×0.66 ±0.02 in
Weight: 17 g / 0.60 oz
Screw terminals max torque: 0.2 Nm / 1.8 lbin
Conductor cross section: 0.1 to 1 mm² / 30 to 16 AWG (solid, stranded, and bootlace ferrules)
Conductor stripped length: 6 mm / 0.24 in
Mounting: In-wall
Shell material: Plastic
Shell color: Yellow
Connectors color: Green
Environmental
Ambient working temperature: -20 °C to 40 °C / -5 °F to 105 °F
Humidity: 30 % to 70 % RH
Electrical
Power supply: 12/24 VDC
Power consumption: < 1.2 W
Output circuits ratings
Max. control voltage: 24 VDC
Max. control current: 4 A per channel (10 A total)
PWM frequency 22 kHz
Sensors, meters
Voltmeter: 0-24 V
Voltmeter accuracy: ± 5%
Ammeter: 0-10 A
Ammeter accuracy: ± 10%
Power and energy meters: Power measurement
No load threshold: 0.5 VA per channel
Internal-temperature sensor: Yes
Radio
Wi-Fi
Protocol: 802.11 b/g/n
RF band: 2401 – 2495 МHz
Max. RF power: < 20 dBm
Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions)
Bluetooth
Protocol: 4.2
RF band: 2400 – 2483.5 MHz
Max. RF power: < 4 dBm
Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions)
Microcontroller unit
CPU: ESP-Shelly C38F
Clock frequency: 160 Mhz
RAM: 400 KB
Flash: 4 MB
Firmware capabilities
Schedules: 20
Webhooks (URL actions): 20 with 5 URLs per hook
Scripting: Yes
MQTT: Yes
Scripting: Yes



Use Cases

  • Power monitoring: Monitor power consumption of all connected lights in real-time. This is useful for understanding energy usage patterns and promoting energy efficiency.
  • Space-efficient retrofitting: Install one of the smallest devices on the market into standard electrical wall boxes, behind power sockets, light switches, or other locations with limited space.
  • Wake-up and sleep routines: Use a wide range of color and brightness levels in Night mode to simulate sunrise or sunset by gradually changing the color and brightness. Implement circadian lighting, promoting better sleep-wake cycles and supporting overall well-being by adjusting light color and intensity throughout the day.
  • Child-friendly night lights: Create a comforting and child-friendly environment. Adjust colors to provide a soothing ambiance for children during bedtime.
  • Seasonal or entertainment decoration: Decorate homes or commercial spaces for different seasons or holidays by adjusting the RGBW lighting. For example, use warm tones for autumn and festive colors during holidays. Set dynamic and vibrant lighting patterns for parties, gatherings, or entertainment events.
  • Smart presence simulation: Set customized color and brightness levels at at any given time or based on sunrise/sunset. Enhance home security by simulating presence and turning lights on and off in a natural pattern.
  • Retail and commercial displays: Use the Device for visual merchandising in retail spaces. Showcase products with dynamic lighting to attract attention and create visually appealing displays.
  • Enhanced lighting control options: Integrate the Device with most of the frequently used home automation systems like Home Assistant, Google Home, Alexa, and SmartThings for expanded control options.
  • Dynamic art installations: Integrate the Device into art installations or exhibitions to add dynamic and interactive lighting effects, enhancing the visual impact and engagement.

Compatibility

Amazon Alexa supported capabilities

  • Brightness Controller

Google Smart Home supported traits

  • Brightness

Samsung SmartThings supported capabilities

  • Color Control

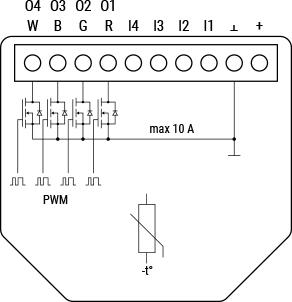

Simplified internal schematics




Device electrical interfaces

Inputs

  • 4 switch/button inputs on screw terminals: I1 and I4
  • 2 power supply inputs on screw terminals: (+) and (Ʇ)

Outputs

  • 4 outputs on screw terminals: O1, O2, O3 and O4. Same are used for R, G, B and W

Connectivity

  • Wi-Fi
  • Bluetooth

Safety function

  • Overheating protection
  • Overcurrent protection

Supported load types

  • 12/24 V mono-color LED strips
  • 12/24 V RGB LED strips
  • 12/24 V RGBW LED strips

User interface

Inputs

  • One (Control) button
    • Press and hold for 5 seconds to enable Device access point and Bluetooth connection.
    • Press and hold for 10 seconds to factory reset the Device.

Outputs

  • LED (monocolor) indication
    • AP (Access Point) enabled and Wi-Fi disabled:
      1 second ON / 1 second OFF
    • Wi-Fi enabled, but not connected to a Wi-Fi network:
      1 second ON / 3 seconds OFF
    • Connected to a Wi-Fi network:
      Constantly ON
    • Cloud is enabled, but not connected:
      1 second ON /5 seconds OFF
    • Connected to Shelly Cloud:
      Constantly ON
    • OTA (Over the Air Update):
      ½ sec ON / ½ second OFF
    • Button pressed and held for 5 seconds:
      ½ second ON / ½ second OFF
    • Button presses and held for 10 seconds:
      ¼ second ON / ¼ second OFF

The list above starts with the initial device status and the lowest priority. Every next state cancels the previous one.
